My PowerBoost is essentially dead

[devern]

Just to add some data after staring at this again for a while... 12.37V measured during the freeze frame seems low to me.

Trouble Code Report

ECU	Code	Type	Status	UDS Status	Description
Battery Energy Control Module	P1A42-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Confirmed	N/A	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Permanent	N/A	Propulsion System Status Signal Performance
DC to DC Converter Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
DC to DC Converter Control Module	U0293-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Hybrid Powertrain Control Module
Gateway Module A	U0001-09	Network	Confirmed	DTC is confirmed at the time of the request	High Speed (CAN) Communication Bus
Power Steering Control Module	U0415-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from Anti-Lock Brake System ((ABS)) Control Module 'A'

Mode $02 - Freeze Frame



First Occurrence

Description	Value	Units
Freeze frame DTC	P1A42
Calculated load value	0	%
Engine coolant temperature	-40	°C
Engine RPM	16383.75	RPM
Vehicle speed	255	km/h
Time since engine start	0	sec
Control module voltage	12.37	V
Accelerator pedal position D	0	%

Sponsored



[HammaMan]

Different items on different busses? GWM issue?

The gateway module is rather important providing communication between each of the discrete busses. Think of it like an ethernet switch that instead of talking to each computer, it talks to a bus that has half a dozen 'computers' on each one. The fact the GWM is showing up in there as well as different items on different busses seems to point at it specifically.....



[Snakebitten]

What's up with the RPM value?

And I'm curious what the situation was at the moment of the frame?



[Snakebitten]

Different items on different busses? GWM issue?

That dang module is so mission critical to the whole truck assembly. Does make you wonder considering it gets so many updates and a "software bug" there could have you chasing rabbits so easily.



[devern]

The situation at the moment of the frame was attempting to start the truck after work. This is why I think the PCM isn't being woken up, and the other modules read a default value of max, or 0xFF or what have you.

They have apparently replaced the GWM already last year. It threw more codes from additional modules that last time this happened (April 15). I didn't think to store a diag report, but got some screenshots while it was happening. Common theme might be the 12V voltage?



[devern]

One other thing that has me curious... I've been stuck on 1.7.1 OTA for a while too. I have to wonder which module is causing that, and could it be contributing to *whatever* is causing this behaviour?



[Snakebitten]

Wait.
Have you had anyone look up your VIN in FDRS?

Ford, as much flack as we give them for their software code, has updated so much on so many aspects of the Gen14 truck since that "era"



[devern]

Yeah, @rugedraw looked it up for me back in December in the context of OTAs, not sure if that would have been FDRS or Oasis or what: https://www.f150gen14.com/forum/threads/request-vin-lookup-thread.13393/post-289028



[devern]

Apologies for the wall of text, I'm brainstorming in this post a bit.

SO another nice weekend parked in the sun and we get stranded. Thankfully, for whatever reason, we seem to be able to turn on some accessories (Air Conditioning) when it exhibits "Stop Safely Now" / "No start" conditions.

Lots more codes this time though, surprisingly. It seems like the actions taken by my dealer's service dept are altering the symptoms, so it's likely there were/are multiple deficiencies. One new permanent code that led me to look at a couple of published bulletins: P1A0E "Hybrid Powertrain Control Module - Motor Disabled". The 12V system is still suspect, based on data I was able to record while experiencing the problem. Multiple modules were reporting voltages under 12V: I was able to observe the IPC Module @ 11.6V, BECM Battery Voltage @ 11.9V, APIM @ 11.9V, Occupant Classification System Module @ 11.8V. I could not read the PCM or ABS modules' voltage, since there was no communication. This was after ~1 hour of highway driving, and then parked with both FOBs out of range of the truck for ~2 hours. After about 30 minutes, I was able to start the truck again. The only actions I took were to pop the hood and wiggle several points in the harness while watching multiple PIDs for module voltage fluctuations (there weren't any). Finally, I closed the hood and the driver's seat adjusted to the stored position. Whether that is coincidence, or the impact from closing the hood jostled *something*... who knows. I then attempted to start the truck from the FordPass app, and it was able to start on the second attempt (the first attempt had the driver's door open). Now, this is the first time that I've seen the truck display "Stop Safely Now" after a successful start. So I let the truck idle for a bit, very hesitant to attempt moving it. Stopping and starting a second time after idling for a few minutes, the IPC warnings were no longer present, so we drove home.

Now, watching those same PIDs directly after successfully starting the truck, they all read in the range of 14V (the DC-to-DC inverter actively charging the 12V system). Observing them again today, their "steady state" voltage appears to be around 12.8V.

I'll be having a rather lengthy chat with the service dept tomorrow. The code it stored yesterday allowed me to find a couple of potentially relevant bulletins: TSB 21-2072, and SSM50151. When I examined the wiring diagrams a couple of months back, I suspected a MOSFET on the BCM that sends wake signal to the BECM, SOBDMC and PCM. I think I was on the right track, but I also observed the PID for this Wake signal changing from position 2 to position 1 (MOSFET most likely is good) when attempting to start the vehicle. Now, TSB-21-2072 provides a key piece of information: "(SOBDMC), also referred to as the inverter system controller (ISC).".

I wonder... what if:

• there is a problem with the SOBDMC, or an attached module that it depends on
  • could this impact the DC-to-DC conversion, preventing the hybrid battery from providing conditioning of the 12V system?
  • how could this be linked to warm weather / a hot cabin
• there is a problem with the aux 12V battery, causing a rapid drain on the 12V system
  • there is no temperature monitoring on it, and there is no separate isolated voltage readout. it is located in the cabin, so potentially a poor connection, or failing battery could be adversely impacted by heat?
  • could it cause the PCM and other modules to fail to wake due to lower voltage? Not outside the realm of possibilty IMO; the PCM has previously stored codes about low voltage, and failed self-tests.

At any rate, I expect the plethora of communication failures are a symptom, rather than a cause. Now, conveying this to my service advisor in a way that makes sense and might actually be helpful... well that will be the next struggle

I didn't think to generate the fancy HTML report while it was happening, unfortunately. But all of the codes were present until after I drove the vehicle today. Now the permanent code is gone and MIL indicator is off.

Trouble Code Report

ECU	Code	Type	Status	UDS Status	Description
Air Conditioning Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
All Terrain Control Module	U0102-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCCM)
Anti-Lock Brake / Traction Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Anti-Lock Brake / Traction Control Module	U0103-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (GSM)
Anti-Lock Brake / Traction Control Module	U1026-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	(ABS) Control Module Lost Communication with Hybrid/(EV) Powertrain Control Module
Battery Energy Control Module	P1A42-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Confirmed	N/A	Propulsion System Status Signal Performance
Body Control Module	U023A-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with Image Processing Module A
Body Control Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Body Control Module	U0131-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Body Control Module C	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Body Control Module C	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Body Control Module C	U0293-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Hybrid Powertrain Control Module
DC to DC Converter Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
DC to DC Converter Control Module	U0293-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Hybrid Powertrain Control Module
Driver Front Door Module	U0232-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'A'
Gateway Module A	U0001-09	Network	Confirmed	DTC is confirmed at the time of the request	High Speed (CAN) Communication Bus
Gear Shift Module	U0100-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Gear Shift Module	U0100-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Gear Shift Module	U0121-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Gear Shift Module	U0121-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Gear Shift Module	U0100-87	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Gear Shift Module	U0100-87	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Headlamp Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Headlamp Control Module	U0126-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Steering Angle Sensor Module
Headlamp Control Module	U0146-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Gateway A
Headlamp Control Module	U023A-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with Image Processing Module A
Image Processing Module A	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Image Processing Module A	U0101-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with (TCM)
Image Processing Module A	U0103-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (GSM)
Image Processing Module A	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Image Processing Module A	U0131-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Power Steering Control Module 'A'
Image Processing Module A	U0140-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Image Processing Module A	U0151-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Restraints Control Module
Image Processing Module A	U0155-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Image Processing Module A	U0212-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (SCCM)
Image Processing Module A	U0253-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Image Processing Module A	U0401-86	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Image Processing Module A	U0402-86	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (TCM)
Image Processing Module A	U2300-55	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Central Configuration
Image Processing Module A	U0200-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Door Control Module B
Image Processing Module A	U0424-86	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (HVAC) Control Module - Rear
Image Processing Module A	U0164-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Instrument Panel Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Instrument Panel Control Module	U0232-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'A'
Instrument Panel Control Module	U0233-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'B'
Instrument Panel Control Module	U0401-82	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received from (ECM)/(PCM) A
Occupant Classification System Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Pedestrian Alert Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Power Steering Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Power Steering Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Power Steering Control Module	U0415-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from Anti-Lock Brake System ((ABS)) Control Module 'A'
Power Steering Control Module	U3003-68	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Battery Voltage
Radio Transceiver Module	U0401-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Radio Transceiver Module	U0401-82	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Rear Gate Trunk Module	U0101-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCM)
Rear Gate Trunk Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Restraint Control Module	B00A0-68	Body	Confirmed	DTC is confirmed at the time of the request	Occupant Classification System
Restraint Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Restraint Control Module	U0401-81	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received from (ECM)/(PCM) A
Restraint Control Module	U0422-92	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received From Body Control Module
Restraint Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Restraint Control Module	U023B-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Image Processing Module B
Restraint Control Module	U0131-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Secondary OBD Control Module C	P0A23-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Generator Torque Sensor Circuit Range/Performance
Secondary OBD Control Module C	P0A2F-94	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Drive Motor A Over Temperature
Secondary OBD Control Module C	P1A0E-64	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-96	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Secondary OBD Control Module C	U0111-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Battery Energy Control Module 'A'
Secondary OBD Control Module C	U0140-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Secondary OBD Control Module C	U0151-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Restraints Control Module
Secondary OBD Control Module C	U0155-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Secondary OBD Control Module C	U0164-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Secondary OBD Control Module C	U0298-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (DC/DC) Converter Control Module 'A'
Secondary OBD Control Module C	U1022-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Internal Control Module Monitoring Data Received from Body Control Module
HPCM-HybridPtCtrl	P0A23	PowerTrain	Confirmed	N/A	Generator Torque Sensor Circuit Range/Performance
HPCM-HybridPtCtrl	P1A0E	PowerTrain	Confirmed	N/A	Hybrid Powertrain Control Module - Motor Disabled
HPCM-HybridPtCtrl	U0100	Network	Confirmed	N/A	Lost Communication With (ECM)/(PCM) 'A'
HPCM-HybridPtCtrl	U0111	Network	Confirmed	N/A	Lost Communication With Battery Energy Control Module 'A'
Trailer Module	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Trailer Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Trailer Module	U0140-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Body Control Module
Trailer Module	U0131-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Transfer Case Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Transfer Case Control Module	U0101-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCM)
Transfer Case Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'

Additional Information

Description	Value	Units
Malfunction indicator lamp (MIL) status	Off

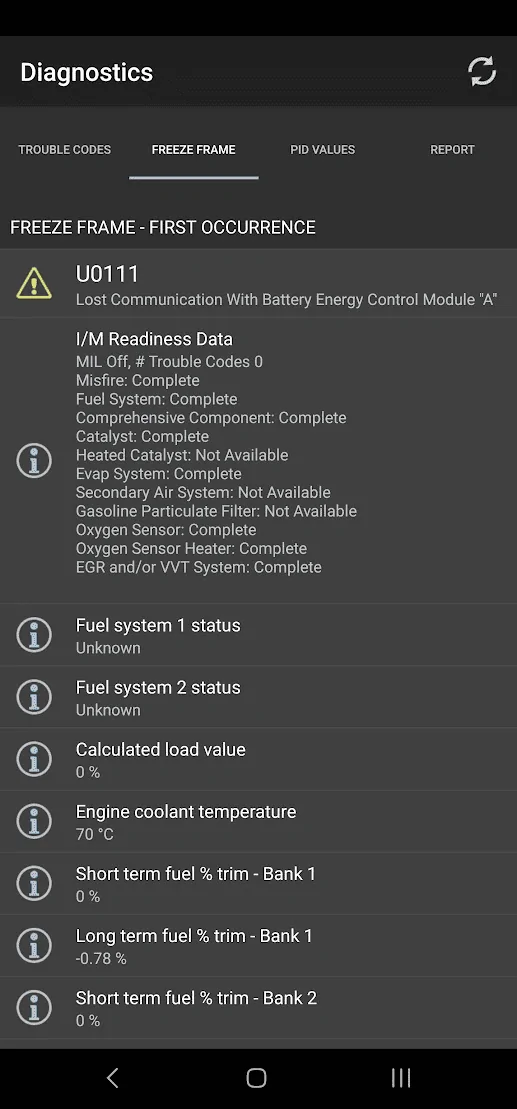

Freeze frame DTC	U0111
Distance traveled while MIL is activated	0	km
Number of warm-ups since DTCs cleared	6
Distance traveled since DTCs cleared	676	km

Mode $02 - Freeze Frame


First Occurrence

Description	Value	Units
Freeze frame DTC	U0111
I/M Readiness Data	MIL Off, # Trouble Codes 0 Misfire: Not Available Fuel System: Not Available Comprehensive Component: Complete Catalyst: Not Available Heated Catalyst: Not Available Evap System: Not Available Secondary Air System: Not Available Gasoline Particulate Filter: Not Available Oxygen Sensor: Not Available Oxygen Sensor Heater: Not Available EGR and/or VVT System: Not Available
Calculated load value	0	%
Engine coolant temperature	57	°C
Engine RPM	0	RPM
Vehicle speed	255	km/h
Time since engine start	0	sec
Number of warm-ups since DTCs cleared	5
Distance traveled since DTCs cleared	440	km
Control module voltage	12.34	V
Accelerator pedal position D	16.08	%



[Snakebitten]

I suspect a "Service Advisor" will have their eyes glaze over if a well informed/researched customer attempts to educate him/her.

And even worse, getting that same information to the mechanic/technician that will eventually pull your ticket 4 days later?

It's a lousy scenario these days.
If/when I am ever confronted with this alert, I will make every effort to diagnose, but more importantly, look for a work around to get the truck operational so I can get where I'm going.



[devern]

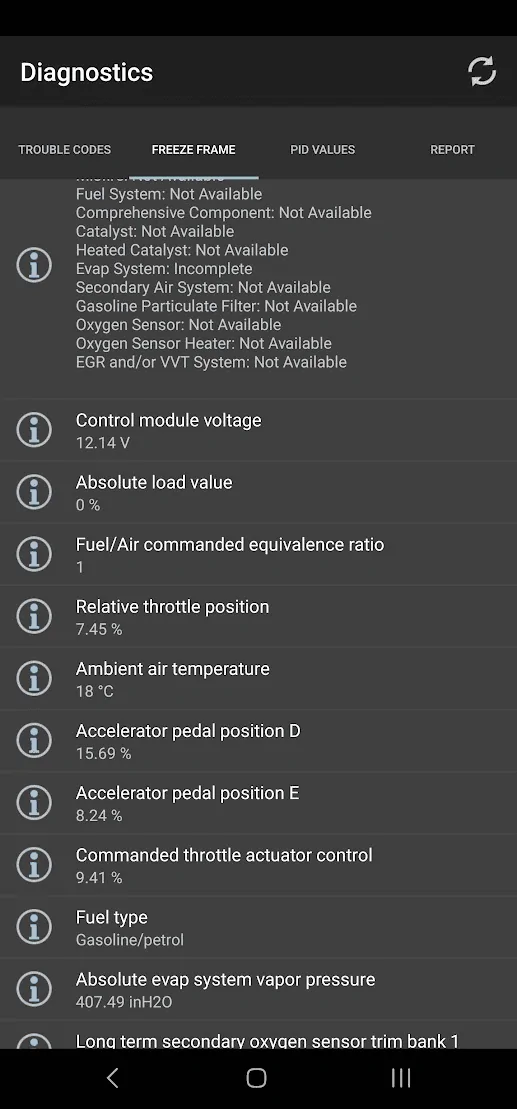

Just went to check on it again after driving it for 3 hours earlier, and parking it in the sun in my driveway. It's happening again now, but not coming out of it. Significantly hotter today than yesterday. Also, I noticed the touch screen is uncomfortably hot to touch... I wonder if that could somehow be the silver bullet tying everything together. A short or something behind the screen when it's hot out.

One other interesting observation is that "Cannot recall memory position while driving" pops up incessantly. I wonder if the BCM is actually repeatedly attempting to recall the seat position, or if the message is popping up for another reason.

I think I'll need a GWM breakout box to be able to diagnose this further. It's terribly difficult getting info while it's happening when the GWM can't communicate with so many modules. At least it seems to be getting more easily repeatable now.

My service advisor knows my analytical reputation by now, and recently introduced me to their head electrical guy. We talked shop for a bit last time I was there, so I might be fortunate enough to get his ear again directly and hopefully fill in some blanks.



[devern]

I just noticed the SOBDMC recorded P0A2F-94 "Drive Motor A Over Temperature". I'm treating anything that doesn't fall under communications issues as even more suspicious. This also has related TSBs that call for reprogramming of modules to fix... ?

Would be great if I could nail down a root cause. If I get to a point where I'm confident that this is something I can solve with a mongoose and FDRS... well, that might just be the justification I have been wanting for the past year. Can't let my confirmation bias distract from troubleshooting though



[devern]

Walked away from it for a while and now of course it starts right up. 198 codes stored now. Some more new P codes that also look troubling.

Between P0562-00 "System Voltage Low" stored in the PCM, and P1A0E, P0A23, P0A71, P0A74, P0A77 and P06B1 being present in the SOBDMC, I think I can confidently say that SSM50151 to troubleshoot the 12V system is the dealer's next course.

Trouble Code Report

ECU	Code	Type	Status	UDS Status	Description
Air Conditioning Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
All Terrain Control Module	U0102-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCCM)
Anti-Lock Brake / Traction Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Anti-Lock Brake / Traction Control Module	U0103-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (GSM)
Anti-Lock Brake / Traction Control Module	U1026-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	(ABS) Control Module Lost Communication with Hybrid/(EV) Powertrain Control Module
Battery Energy Control Module	U0293-00	Network	Pending	DTC is pending at the time of the request DTC test failed at least once since last code clear	Lost Communication With Hybrid Powertrain Control Module
Battery Energy Control Module	U0100-00	Network	Pending	DTC is pending at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Battery Energy Control Module	P1A43-00	PowerTrain	Pending	DTC is pending at the time of the request DTC test failed at least once since last code clear	Hybrid/(EV) Battery Contactor Request Signal Performance
Battery Energy Control Module	P1A42-00	PowerTrain	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Propulsion System Status Signal Performance
Battery Energy Control Module	P1A42-00	PowerTrain	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Confirmed	N/A	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	U0293	Network	Pending	N/A	Lost Communication With Hybrid Powertrain Control Module
BECM-B+EnergyCtrl	U0100	Network	Pending	N/A	Lost Communication With (ECM)/(PCM) 'A'
BECM-B+EnergyCtrl	P1A43	PowerTrain	Pending	N/A	Hybrid/(EV) Battery Contactor Request Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Pending	N/A	Propulsion System Status Signal Performance
BECM-B+EnergyCtrl	P1A42	PowerTrain	Permanent	N/A	Propulsion System Status Signal Performance
Body Control Module	U023A-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with Image Processing Module A
Body Control Module	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Body Control Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Body Control Module	U0131-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Body Control Module C	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Body Control Module C	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Body Control Module C	U0293-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Hybrid Powertrain Control Module
DC to DC Converter Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
DC to DC Converter Control Module	U0293-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Hybrid Powertrain Control Module
Driver Front Door Module	U0232-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'A'
Gateway Module A	U0001-09	Network	Confirmed	DTC is confirmed at the time of the request	High Speed (CAN) Communication Bus
Gear Shift Module	U0100-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Gear Shift Module	U0100-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Gear Shift Module	U0121-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Gear Shift Module	U0121-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Gear Shift Module	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Headlamp Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Headlamp Control Module	U0126-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Steering Angle Sensor Module
Headlamp Control Module	U0146-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Gateway A
Headlamp Control Module	U023A-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with Image Processing Module A
Image Processing Module A	U0100-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Image Processing Module A	U0100-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Image Processing Module A	U0101-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with (TCM)
Image Processing Module A	U0101-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with (TCM)
Image Processing Module A	U0103-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (GSM)
Image Processing Module A	U0121-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Image Processing Module A	U0121-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Image Processing Module A	U0131-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Power Steering Control Module 'A'
Image Processing Module A	U0140-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Image Processing Module A	U0140-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Image Processing Module A	U0151-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Restraints Control Module
Image Processing Module A	U0155-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Image Processing Module A	U0212-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (SCCM)
Image Processing Module A	U0253-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Image Processing Module A	U0253-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Image Processing Module A	U0401-86	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Image Processing Module A	U0401-86	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Image Processing Module A	U0402-86	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (TCM)
Image Processing Module A	U0402-86	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (TCM)
Image Processing Module A	U2300-55	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Central Configuration
Image Processing Module A	U0199-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Door Control Module A
Image Processing Module A	U0199-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Door Control Module A
Image Processing Module A	U0200-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Door Control Module B
Image Processing Module A	U0200-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Door Control Module B
Image Processing Module A	U0424-86	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (HVAC) Control Module - Rear
Image Processing Module A	U0424-86	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received From (HVAC) Control Module - Rear
Image Processing Module A	U0164-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Image Processing Module A	U0164-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Instrument Panel Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Instrument Panel Control Module	U0232-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'A'
Instrument Panel Control Module	U0233-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Side Obstacle Detection Control Module 'B'
Instrument Panel Control Module	U0401-82	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received from (ECM)/(PCM) A
Occupant Classification System Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Pedestrian Alert Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Power Steering Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Power Steering Control Module	U0415-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from Anti-Lock Brake System ((ABS)) Control Module 'A'
Power Steering Control Module	U3003-68	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Battery Voltage
Powertrain Control Module	P0230-00	PowerTrain	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Fuel Pump Primary Circuit
Powertrain Control Module	P0230-00	PowerTrain	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Fuel Pump Primary Circuit
Powertrain Control Module	P0562-00	PowerTrain	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	System Voltage Low
Powertrain Control Module	P0562-00	PowerTrain	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	System Voltage Low
Powertrain Control Module	P0562-00	PowerTrain	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	System Voltage Low
Powertrain Control Module	P0600-00	PowerTrain	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Serial Communication Link
Powertrain Control Module	P0600-00	PowerTrain	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Serial Communication Link
Powertrain Control Module	P0607-00	PowerTrain	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Control Module Performance
Powertrain Control Module	P0607-00	PowerTrain	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Control Module Performance
Powertrain Control Module	P25B0-00	PowerTrain	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Fuel Level Sensor A Stuck
Powertrain Control Module	P25B0-00	PowerTrain	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Fuel Level Sensor A Stuck
Powertrain Control Module	P2ABC-00	PowerTrain	Pending	DTC test failed at the time of DTC request DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Wastegate Position Sensor 'B' Circuit High
Powertrain Control Module	P2ABC-00	PowerTrain	Current	DTC test failed at the time of DTC request DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Wastegate Position Sensor 'B' Circuit High
Powertrain Control Module	U0103-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With (GSM)
Powertrain Control Module	U0103-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With (GSM)
Powertrain Control Module	U0103-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With (GSM)
Powertrain Control Module	U0111-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Lost Communication With Battery Energy Control Module 'A'
Powertrain Control Module	U0111-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Lost Communication With Battery Energy Control Module 'A'
Powertrain Control Module	U0121-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Powertrain Control Module	U0121-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Powertrain Control Module	U0121-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Powertrain Control Module	U0140-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Powertrain Control Module	U0140-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Powertrain Control Module	U0140-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Powertrain Control Module	U0155-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Powertrain Control Module	U0155-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Powertrain Control Module	U0155-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Powertrain Control Module	U0164-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Powertrain Control Module	U0164-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Powertrain Control Module	U0164-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Powertrain Control Module	U0212-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (SCCM)
Powertrain Control Module	U0212-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (SCCM)
Powertrain Control Module	U0212-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (SCCM)
Powertrain Control Module	U023A-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with Image Processing Module A
Powertrain Control Module	U023A-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with Image Processing Module A
Powertrain Control Module	U023A-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with Image Processing Module A
Powertrain Control Module	U0253-00	Network	Confirmed	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Powertrain Control Module	U0253-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Powertrain Control Module	U0253-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Accessory Protocol Interface Module
Powertrain Control Module	U1012-00	Network	Pending	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
Powertrain Control Module	U1012-00	Network	Current	DTC test failed on the current operation cycle DTC is pending at the time of the request DTC test failed at least once since last code clear	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
PCM-PowertrainCtrl	P0230	PowerTrain	Pending	N/A	Fuel Pump Primary Circuit
PCM-PowertrainCtrl	P0600	PowerTrain	Pending	N/A	Serial Communication Link
PCM-PowertrainCtrl	P0607	PowerTrain	Pending	N/A	Control Module Performance
PCM-PowertrainCtrl	P25B0	PowerTrain	Pending	N/A	Fuel Level Sensor A Stuck
PCM-PowertrainCtrl	P2ABC	PowerTrain	Pending	N/A	Wastegate Position Sensor 'B' Circuit High
PCM-PowertrainCtrl	U0111	Network	Pending	N/A	Lost Communication With Battery Energy Control Module 'A'
PCM-PowertrainCtrl	U1012	Network	Pending	N/A	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
Radio Transceiver Module	U0401-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Radio Transceiver Module	U0401-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Radio Transceiver Module	U0401-82	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Radio Transceiver Module	U0401-82	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Data Received from (ECM)/(PCM) A
Rear Gate Trunk Module	U0101-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCM)
Rear Gate Trunk Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Restraint Control Module	B00A0-68	Body	Confirmed	DTC is confirmed at the time of the request	Occupant Classification System
Restraint Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Restraint Control Module	U0401-81	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received from (ECM)/(PCM) A
Restraint Control Module	U0422-92	Network	Confirmed	DTC is confirmed at the time of the request	Invalid Data Received From Body Control Module
Restraint Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Restraint Control Module	U023B-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Image Processing Module B
Restraint Control Module	U0131-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Secondary OBD Control Module C	P06B1-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Sensor Power Supply A Circuit Low
Secondary OBD Control Module C	P0A23-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Generator Torque Sensor Circuit Range/Performance
Secondary OBD Control Module C	P0A2F-94	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Drive Motor A Over Temperature
Secondary OBD Control Module C	P0A71-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Generator Phase U Current High
Secondary OBD Control Module C	P0A74-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Generator Phase V Current High
Secondary OBD Control Module C	P0A77-00	PowerTrain	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Generator Phase W Current High
Secondary OBD Control Module C	P1A0E-61	PowerTrain	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-61	PowerTrain	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-64	PowerTrain	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-64	PowerTrain	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-96	PowerTrain	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	P1A0E-96	PowerTrain	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Hybrid Powertrain Control Module - Motor Disabled
Secondary OBD Control Module C	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (ECM)/(PCM) 'A'
Secondary OBD Control Module C	U010F-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With Air Conditioning Control Module
Secondary OBD Control Module C	U0111-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With Battery Energy Control Module 'A'
Secondary OBD Control Module C	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Secondary OBD Control Module C	U0140-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Body Control Module
Secondary OBD Control Module C	U0143-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Lost Communication With Body Control Module C
Secondary OBD Control Module C	U0151-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Restraints Control Module
Secondary OBD Control Module C	U0155-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With Instrument Panel Cluster ((IPC)) Control Module
Secondary OBD Control Module C	U0164-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (HVAC) Control Module
Secondary OBD Control Module C	U0298-00	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication With (DC/DC) Converter Control Module 'A'
Secondary OBD Control Module C	U1011-86	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Invalid Internal Control Module Monitoring Data Received from (ECM)/(PCM)
Secondary OBD Control Module C	U1011-86	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Invalid Internal Control Module Monitoring Data Received from (ECM)/(PCM)
Secondary OBD Control Module C	U1012-86	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
Secondary OBD Control Module C	U1012-86	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear ECU is requesting the warning indicator to be active	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
Secondary OBD Control Module C	U1022-00	Network	Confirmed	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Internal Control Module Monitoring Data Received from Body Control Module
Secondary OBD Control Module C	U1022-00	Network	Pending	DTC is pending at the time of the request DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Invalid Internal Control Module Monitoring Data Received from Body Control Module
HPCM-HybridPtCtrl	P06B1	PowerTrain	Confirmed	N/A	Sensor Power Supply A Circuit Low
HPCM-HybridPtCtrl	P0A23	PowerTrain	Confirmed	N/A	Generator Torque Sensor Circuit Range/Performance
HPCM-HybridPtCtrl	P0A71	PowerTrain	Confirmed	N/A	Generator Phase U Current High
HPCM-HybridPtCtrl	P0A74	PowerTrain	Confirmed	N/A	Generator Phase V Current High
HPCM-HybridPtCtrl	P0A77	PowerTrain	Confirmed	N/A	Generator Phase W Current High
HPCM-HybridPtCtrl	P1A0E	PowerTrain	Confirmed	N/A	Hybrid Powertrain Control Module - Motor Disabled
HPCM-HybridPtCtrl	U0100	Network	Confirmed	N/A	Lost Communication With (ECM)/(PCM) 'A'
HPCM-HybridPtCtrl	U010F	Network	Confirmed	N/A	Lost Communication With Air Conditioning Control Module
HPCM-HybridPtCtrl	U0111	Network	Confirmed	N/A	Lost Communication With Battery Energy Control Module 'A'
HPCM-HybridPtCtrl	U0121	Network	Confirmed	N/A	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
HPCM-HybridPtCtrl	U0143	Network	Confirmed	N/A	Lost Communication With Body Control Module C
HPCM-HybridPtCtrl	U1011	Network	Confirmed	N/A	Invalid Internal Control Module Monitoring Data Received from (ECM)/(PCM)
HPCM-HybridPtCtrl	U1012	Network	Confirmed	N/A	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
HPCM-HybridPtCtrl	P1A0E	PowerTrain	Pending	N/A	Hybrid Powertrain Control Module - Motor Disabled
HPCM-HybridPtCtrl	U1011	Network	Pending	N/A	Invalid Internal Control Module Monitoring Data Received from (ECM)/(PCM)
HPCM-HybridPtCtrl	U1012	Network	Pending	N/A	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
HPCM-HybridPtCtrl	P06B1	PowerTrain	Permanent	N/A	Sensor Power Supply A Circuit Low
HPCM-HybridPtCtrl	P0A23	PowerTrain	Permanent	N/A	Generator Torque Sensor Circuit Range/Performance
HPCM-HybridPtCtrl	P0A71	PowerTrain	Permanent	N/A	Generator Phase U Current High
HPCM-HybridPtCtrl	P0A74	PowerTrain	Permanent	N/A	Generator Phase V Current High
HPCM-HybridPtCtrl	P0A77	PowerTrain	Permanent	N/A	Generator Phase W Current High
HPCM-HybridPtCtrl	P1A0E	PowerTrain	Permanent	N/A	Hybrid Powertrain Control Module - Motor Disabled
HPCM-HybridPtCtrl	U010F	Network	Permanent	N/A	Lost Communication With Air Conditioning Control Module
HPCM-HybridPtCtrl	U0111	Network	Permanent	N/A	Lost Communication With Battery Energy Control Module 'A'
HPCM-HybridPtCtrl	U0143	Network	Permanent	N/A	Lost Communication With Body Control Module C
HPCM-HybridPtCtrl	U1011	Network	Permanent	N/A	Invalid Internal Control Module Monitoring Data Received from (ECM)/(PCM)
HPCM-HybridPtCtrl	U1012	Network	Permanent	N/A	Invalid Internal Control Module Monitoring Data Received from Anti-Lock Brake System ((ABS)) Control Module
Steering Column Control Module	U023A-08	Network	Confirmed	DTC is confirmed at the time of the request DTC test failed at least once since last code clear	Lost Communication with Image Processing Module A
Trailer Module	U0100-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Trailer Module	U0121-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Trailer Module	U0140-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Body Control Module
Trailer Module	U0131-87	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Power Steering Control Module 'A'
Transfer Case Control Module	U0100-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With (ECM)/(PCM) 'A'
Transfer Case Control Module	U0101-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with (TCM)
Transfer Case Control Module	U0121-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication With Anti-Lock Brake System ((ABS)) Control Module 'A'
Transfer Case Control Module	U0138-00	Network	Confirmed	DTC is confirmed at the time of the request	Lost Communication with All Terrain Control Module



[devern]

I still think there are 2 separate problems, however, I am starting to lean further into that both of them could be fixed by getting this thing up to date.

I *think* that the codes for "Drive Motor A Over Temperature" and "Hybrid Powertrain Control Module - Motor Disabled" are very much related. I think this is what is causing the brunt of my frustration, and what is ultimately resulting in the no-start condition.

Now, the piece I haven't confirmed yet, but I suspect that some part of the hybrid cooling system is impacted by a 12V drop, so on warm days when the system would require more cooling during operation, the hybrid components are not getting it. It's also possible that a temperature threshold parameter for this was addressed in a software update, and the overtemp condition contributes to the 12V drop somehow.

One thing that bothers me (after reviewing previous work orders), is when the IPMA was replaced the work order notes that the reprogram failed due to low state of charge of the battery... this leads me to believe that the service dept. is either unaware or is ignoring the requirement of external 12V supply to do updates. Maybe the IPMA doesn't require it, but it is worth an eyebrow raise.



[HammaMan]

....

To be clear, most of the hybrid components are on a discrete, low temp cooling loop. If needed, the AC is used via a plate heat exchanger to provide additional cooling. The electric motor on the other hand is cooled via the trans fluid. From everything we've seen thus far, the transmission overheats before the emotor does. You're the first case I've heard of anything in regards to the emotor temp. Given the long list of codes previously seen, it sounds more like a GWM issue.

The IPMA programming killing the battery is due to incompetence on the tech that did the programming. He didn't use a proper power source on the 12v system. About the only thing that tells us is that they're not using the brightest lightbulb on your truck.

Sponsored
