awesome idea and thanks for letting the community get a hold of it. wish i was more into 3D printing. i feel like im good with tools and design but outside of that, i'd be lost haha
Sponsored


OP
OP

dad_w_truck

Well-known member
First Name
Dad
Joined
Dec 29, 2021
Threads
25
Messages
136
Reaction score
185
Location
Southwest WA
Vehicles
2021 F150 Super crew w/ 6.5" bed
awesome idea and thanks for letting the community get a hold of it. wish i was more into 3D printing. i feel like im good with tools and design but outside of that, i'd be lost haha
I will tell you that 3D printing has gotten a lot easier than it was 10 years ago. Even me getting in 4 years ago. I skipped past a lot of the pain that people went through to get good prints. These days. If you spend anywhere north of like $500, you can get a solid printer that just prints what you need. I got a Prusa MK3s for 800 bucks 4 years back and that really is the entry point to buy a printer that just prints what you ask it to instead of having to worry about leveling, first layer thickness, removing the print from a glass bed etc.


astrand1

Well-known member
First Name
Alex
Joined
Dec 16, 2021
Threads
9
Messages
833
Reaction score
606
Location
Michigan
Vehicles
22 Ford F150 Powerboost 7.2kw
Occupation
Studio truck driver

Sponsored

Facemelter

Well-known member
First Name
Andy
Joined
Apr 3, 2022
Threads
5
Messages
128
Reaction score
98
Location
Ohio
Vehicles
22 Space White 3.5 S-crew. 89 Mustang Notch
Looks like a great design you made. I know how long some designs can take. I had no prior knowledge of CAD when I bought my 3d printer.
I designed the bracket for my Rough Country light controller to sit in and I with all the angles and small little corners, it about drove me insane.


Porpoise Hork

Well-known member
First Name
Bret
Joined
Aug 27, 2022
Threads
18
Messages
2,108
Reaction score
2,417
Location
Houston
Vehicles
22 F150 XLT Powerboost FX4 302A Oxford White
Occupation
IT Sys Admin
FL-500S oil filter socket - spent some time designing this today... cheers!

Edit - designed a 14 rib version as well. I had two FL-500S filters needing two different sockets so I designed the 2nd one as well. Download at the link above.




There is also this guy to quiet up that backup beeper...
Nicely done sir.

Interesting note on the Extrusion Multiplier being set to .96. I have been trying to find a means to replicate Cura's slicing Exclusive tolerance setting with PrusaSlicer so parts will fit better. Never thought to mess with this setting so see what difference it would make with close tolerance prints.


MacMadeF150

New member
First Name
Rusty
Joined
Oct 3, 2023
Threads
0
Messages
1
Reaction score
0
Location
Chicago
Vehicles
‘21 F150, ‘56 F100
Occupation
Upholsterer for the Chicago Transit Authority by day, Owner of Mac Made Design by night

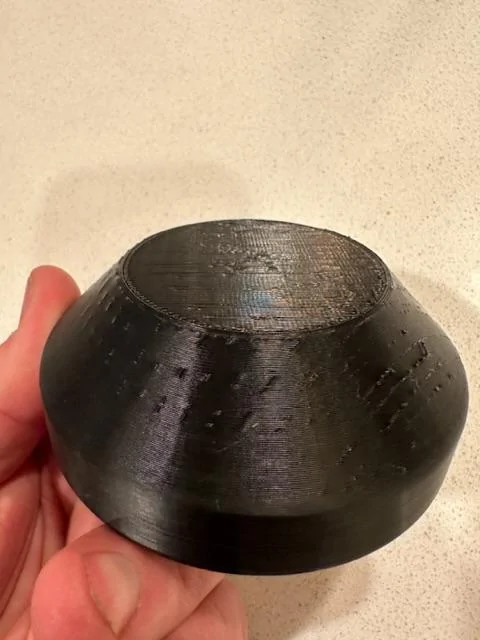

Sooooooo……I just printed the 14 sided one and it doesn’t have the 3/8 ratchet hole.

even the 3D file doesn’t show it.

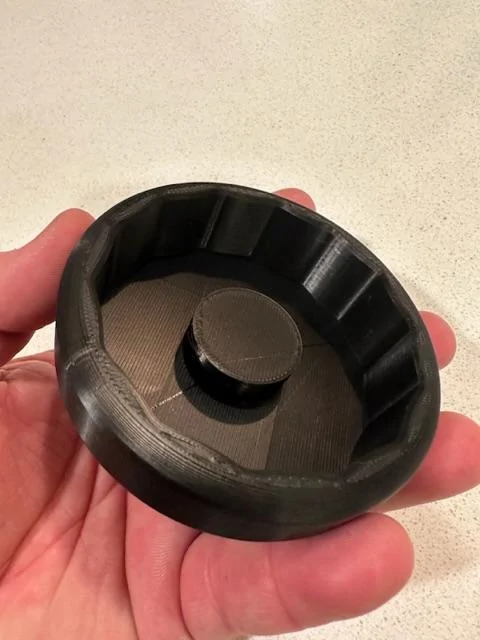

Ford F-150 3D printable oil filter socket tool (FL-500S) DB660032-811D-44BD-8282-465452D3A1F4
Ford F-150 3D printable oil filter socket tool (FL-500S) 48607FE9-61EF-429E-8A32-9012B9381C03

OP
OP

dad_w_truck

Well-known member
First Name
Dad
Joined
Dec 29, 2021
Threads
25
Messages
136
Reaction score
185
Location
Southwest WA
Vehicles
2021 F150 Super crew w/ 6.5" bed
Sooooooo……I just printed the 14 sided one and it doesn’t have the 3/8 ratchet hole.

even the 3D file doesn’t show it.
Can you check your slicer gcode output? That cylinder is a modifer in Prusa Slicer... not sure why it printed as solid for you?

I added the stl files to the printables page. You can add perimeter modfiers in your slicer if you want.

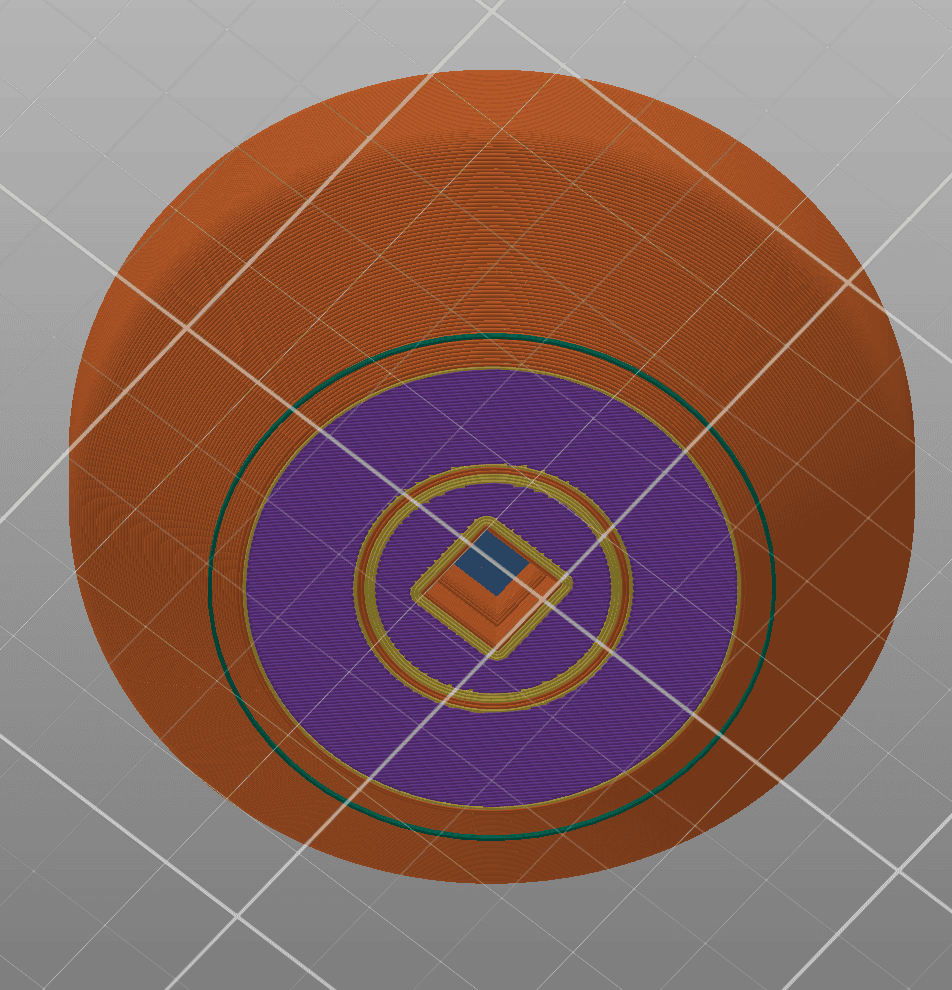

The sliced object gcode looks like this:

Ford F-150 3D printable oil filter socket tool (FL-500S) 1696480190769


Ford F-150 3D printable oil filter socket tool (FL-500S) 1696480212862


Jeff1024

Well-known member
First Name
Jeff
Joined
Nov 18, 2021
Threads
19
Messages
460
Reaction score
550
Location
Louisville, KY
Vehicles
2022 F150
Mine did the same thing, its a Ender and I got the solid cylinder in the middle w/ no cutout for the ratchet. Chalked it up to bad luck but maybe the slicer is doing something weird. I sliced /w Cura if it matters.


cheesedogf150

Well-known member
First Name
CheeseDog
Joined
Aug 22, 2022
Threads
13
Messages
280
Reaction score
217
Location
Toronto, Ontario, Canada
Vehicles
2022 F-150 Lariat
Our public libraries have printers you can use. For the cost of a cup a coffee you can print it.
