Need information on electrical connection

[SilverPigeon]

Page 222:

If it’s a reset why is it listed as a 12 volt on cover?...

I don't know what to tell you; I'm not Ford ?‍

Sponsored



[Ricksc]

Makes ford sense. All else fails look it up in the manual. My truck doesn’t have that. It’s a 12 volt outlet



[Sojourner]

I would guess it says "12v" b/c it's a 12v system and Ford didn't want to pay to produce "12v Reset" flaps/lid covers?

Things like this are why I have a Brother label maker and label cassettes of various widths and colors!



[JEB]

This is mine. I am not able to pull it out easily.

Looks like Ford screwed up at the factory. With a panel breaker like you have, this is the cover you should have gotten:



[anonymous1977]

Looks like Ford screwed up at the factory. With a panel breaker like you have, this is the cover you should have gotten:

Let me take a picture of what I have.



[JEB]

Let me take a picture of what I have.

I’m pretty sure I already know. It probably says “12V,” which caused the confusion.

Because you have a relatively high-capacity 120V/20A/2400W AC socket in the dash, a 20A resettable breaker in the dash above the AC socket in place of the 12V cigarette-style socket was the correct installation, and that’s what you have. Ford screwed up by putting on the wrong cover. It’s cosmetic only but annoying and confusing.



[Henfield]

Question for you PB owners. What is the max wattage that the in cab 110v outlets can put out? I'm real strict about only one laptop can charge at a time because I have a humble 400w set up.



[JEB]

Question for you PB owners. What is the max wattage that the in cab 110v outlets can put out? I'm real strict about only one laptop can charge at a time because I have a humble 400w set up.

Not sure if it’s the same for all PB’s, but my limit on the interior outlets for the 7.2kW inverter is 20A/2400W.



[Ryan.B]

That reset button is standard on PB with PPOB.



[HammaMan]

Not sure if it’s the same for all PB’s, but my limit on the interior outlets for the 7.2kW inverter is 20A/2400W.

All of the 7.2 systems have a 20a breaker because each leg is capable of 30 amps. It's not on the 2.4 system because the inverter's current limitation is its own OCP (overcurrent protection).



[Ricksc]

Let me take a picture of what I have.

So what is your cover look like?



[anonymous1977]

So what is your cover look like?

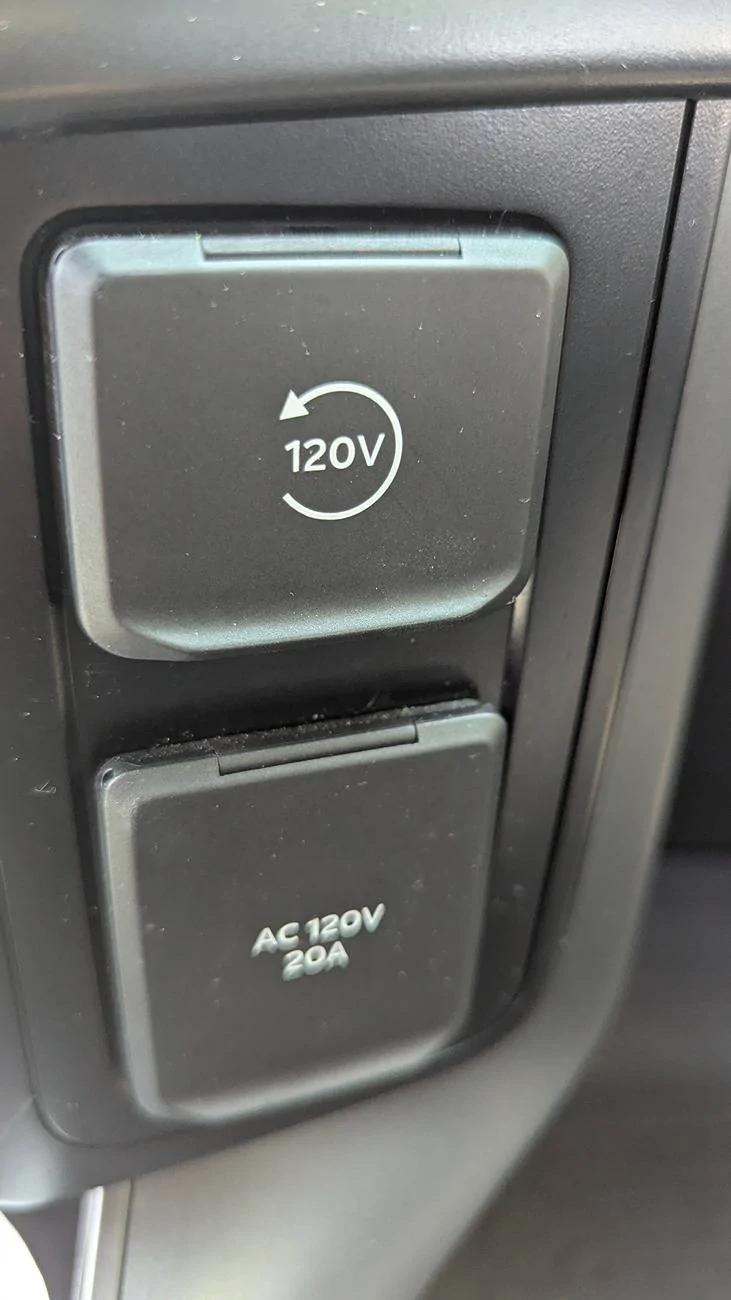

It was my mistake. This is how the cover looks. I misread as 12v during nighttime. I am still scratching my head on why there is no cigarette lighter charging port.



[Ricksc]

This is why asked for pictures in 3rd or fourth post. Also I posted pics open and closed. You only showed it opened. This is not the first time you have been very vague on your post. Or reposting it another way in a new post. To be fair to all that are trying/willing to help you, you need to be more direct on responses and post. This makes you sound like someone trolling the site. People on here are willing to help or give advise but you need to do your part.



[anonymous1977]

This is why asked for pictures in 3rd or fourth post. Also I posted pics open and closed. You only showed it opened. This is not the first time you have been very vague on your post. Or reposting it another way in a new post. To be fair to all that are trying/willing to help you, you need to be more direct on responses and post. This makes you sound like someone trolling the site. People on here are willing to help or give advise but you need to do your part.

I am not sure what other vagueness you are referring to. I don't recall posting anything remotely vague. I have done my part. As I said it was dark last night. So the full picture couldn't be posted. I don't have time to be trolling here.



[Eighthtry]

Gentlemen, that is definitely a loaded shotgun shell. I hammer and nail set will verify.
