Head lights.. What do the upper lights do?

STM

Well-known member
First Name
SM
Joined
Feb 20, 2022
Threads
3
Messages
277
Reaction score
258
Location
Austin, Texas
Vehicles
2010 F 150 XLT
Occupation
Home Builder
On my PB with LED projector lights, both on regular and high beam, only the lower projector lights come on.. When do the upper ones light up?
Sponsored



HammaMan

Well-known member
Joined
Sep 7, 2022
Threads
123
Messages
8,526
Reaction score
9,934
Location
SE US
Vehicles
2022 307a PB
On the reflector LED, the top is the low beam and the bottom is the high beam.


FORDTEXAS

Well-known member
Joined
Jun 29, 2021
Threads
163
Messages
2,157
Reaction score
1,421
Location
Texas
Vehicles
2022 F150 LARIAT
i believe the top projector is for glare free lighting.. don't quote me 100% though


JExpedition07

Well-known member
First Name
James
Joined
Feb 14, 2023
Threads
68
Messages
2,126
Reaction score
3,664
Location
Buffalo NY
Vehicles
2023 F-150 STX 5.0L V8

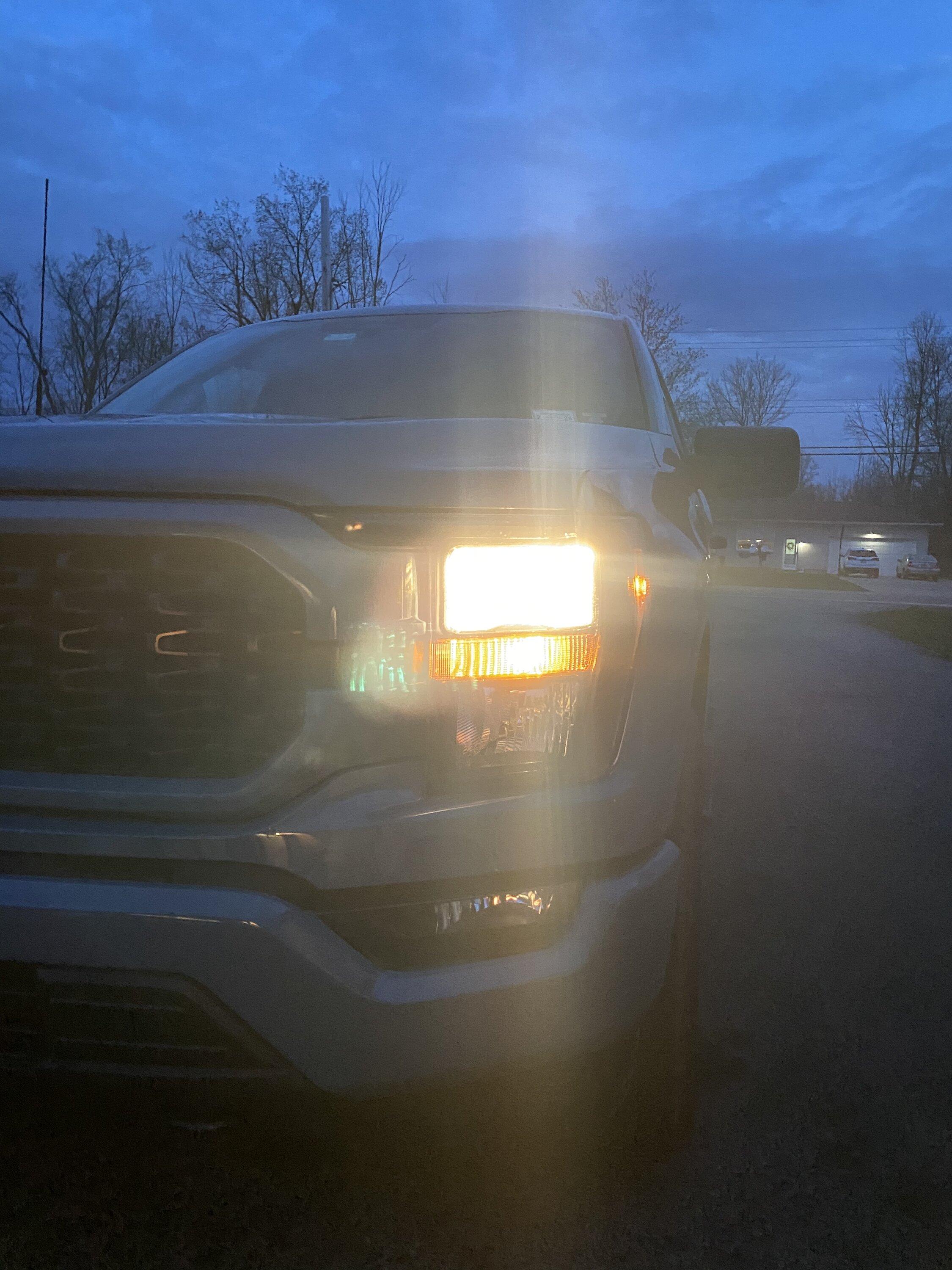

I believe it’s the same as the halogens but opposite. I had the same question. Top is standard beam and high beam is where the bottom bulb joins in. See below:
Ford F-150 Head lights.. What do the upper lights do? 0B060B70-63DE-41D3-8DDB-FA84C0349CD9
Ford F-150 Head lights.. What do the upper lights do? D62806FD-178E-439F-B2A2-FAE27FAEDD82

Last edited:

Sponsored

dolsen

Well-known member
First Name
David
Joined
Aug 19, 2022
Threads
20
Messages
2,097
Reaction score
1,938
Location
KY
Vehicles
2022 Rapid Red 701A
Generally speaking the upper beam is the low beam and the bottom beam is the high beam on most (all?) vehicles with stacked bulb housings.

the projector LED’s have both beams on during low and the lower bulb is the brighter one on low beams. I know this because I had to do a bunch of troubleshooting Wigan upgrading mine

OP
OP

STM

Well-known member
First Name
SM
Joined
Feb 20, 2022
Threads
3
Messages
277
Reaction score
258
Location
Austin, Texas
Vehicles
2010 F 150 XLT
Occupation
Home Builder
I took photos of the head lights reflected in a store front.. It appears like only the lower projector lights up... First photo is low beam and the second one is the high beam

Ford F-150 Head lights.. What do the upper lights do? 20230419_170442


Ford F-150 Head lights.. What do the upper lights do? 20230419_170447


JExpedition07

Well-known member
First Name
James
Joined
Feb 14, 2023
Threads
68
Messages
2,126
Reaction score
3,664
Location
Buffalo NY
Vehicles
2023 F-150 STX 5.0L V8
Well now you have me puzzled


dolsen

Well-known member
First Name
David
Joined
Aug 19, 2022
Threads
20
Messages
2,097
Reaction score
1,938
Location
KY
Vehicles
2022 Rapid Red 701A
I took photos of the head lights reflected in a store front.. It appears like only the lower projector lights up... First photo is low beam and the second one is the high beam



Look into them and I promise you’ll be able to tell the upper ones are on. The upper beams are almost certainly washed out since it’s daylight out

OP
OP

STM

Well-known member
First Name
SM
Joined
Feb 20, 2022
Threads
3
Messages
277
Reaction score
258
Location
Austin, Texas
Vehicles
2010 F 150 XLT
Occupation
Home Builder
Look into them and I promise you’ll be able to tell the upper ones are on. The upper beams are almost certainly washed out since it’s daylight out
I just stepped out and checked the lights again.. You are right.. The upper ones are lit up but the brightness is far lower than the lower projectors..

I also stared straight into the beams (yes.. I know.. Dumb.. But in the name of gathering experimental data)... Because of the curvature of the lens for focusing the beam.. My eye had to be lined up just right to catch the full glare from the projectors..

Here is what I found..
Low beam -
Lower projector had a strong beam of light
Upper projector beam was far weaker than the lower one

High beam -
Lower projector had a significantly stronger beam than when it was set for low beam
Upper projector had a significantly weaker beam then when I had it set up for low beam!

Any idea why the light intensity in the upper projector was significantly lower on high beam setting?

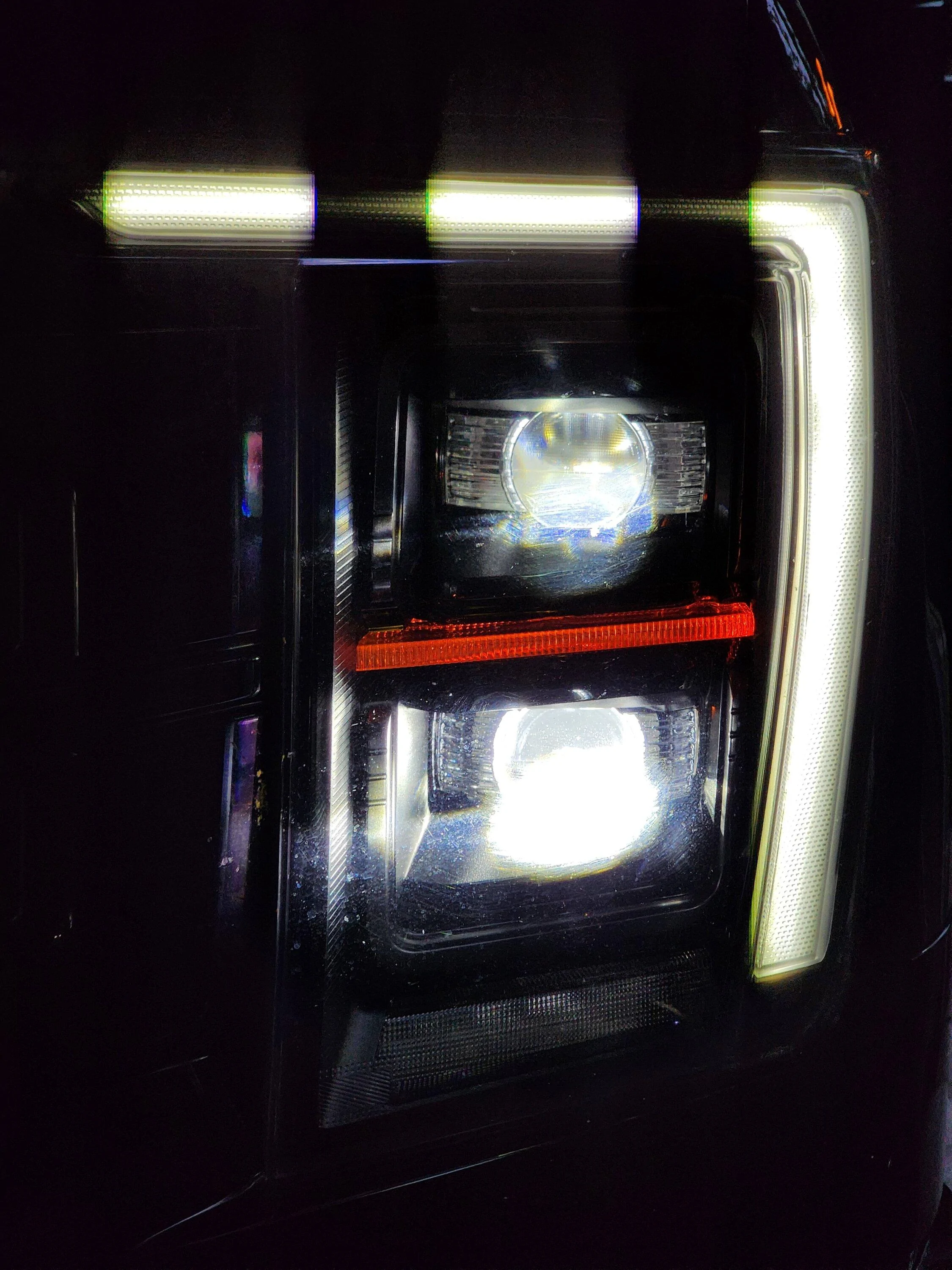

First image is low beam and the second image is for the high beam..

Ford F-150 Head lights.. What do the upper lights do? 20230419_194857


Ford F-150 Head lights.. What do the upper lights do? 20230419_195019


Sponsored


FORDTEXAS

Well-known member
Joined
Jun 29, 2021
Threads
163
Messages
2,157
Reaction score
1,421
Location
Texas
Vehicles
2022 F150 LARIAT
don’t forget that the projector beams have auto leveling. the auto leveling may compensate for the “high beam” effect.
don’t quote me 100% though..


Mladen5375

Well-known member
Joined
Apr 5, 2022
Threads
12
Messages
162
Reaction score
233
Location
Pittsburgh
Vehicles
2022 F150 502A Powerboost, 2023 Expedition SPP
Occupation
Engineer
Some folks here are comparing apples to oranges. The LED headlights on the lariat and above are completely different than the lower models. My 502a does the same thing as described in the original thread


thebigdu

Well-known member
First Name
Brian
Joined
Feb 22, 2022
Threads
18
Messages
680
Reaction score
722
Location
New Jersey
Vehicles
2022 Lariat Sport PowerBoost
I hope somebody is able to provide an accurate answer to this question....I've been curious about this for a while. I actually think the stacked reflector LED headlights on these trucks look better than the projector sometimes because the primary beam is higher up in the housing.

I'm assuming the upper projector is primarily for glare-free use, as @fordhouston suggested.


astrand1

Well-known member
First Name
Alex
Joined
Dec 16, 2021
Threads
9
Messages
833
Reaction score
606
Location
Michigan
Vehicles
22 Ford F150 Powerboost 7.2kw
Occupation
Studio truck driver
Some folks here are comparing apples to oranges. The LED headlights on the lariat and above are completely different than the lower models. My 502a does the same thing as described in the original thread
well just to clarify only the lariat 502a and up have the projectors. the mid and low lariats along with the xlt 302a have the reflector LEDs.
