XLT trucks with push button start cup holder/ambient lighting

[nall]

now for the Forscan changes, HUGE shoutout to @Jesse-Infotainment for the changes I was missing.
...
7D0-01-03 0xxx-xxxx-xxxx(again adjust to vehicle options) his was a 5 so we left it as a 5

Does anyone know the difference between Ambient Lighting System Strategy "Variant 1" and "Variant 2" as listed in @Livnitup 's spreadsheet entry for 7D0-01-03

Sponsored



[Djlee1592]

oemFordPartsOutlet.com came out the cheapest for me, $8 shipping

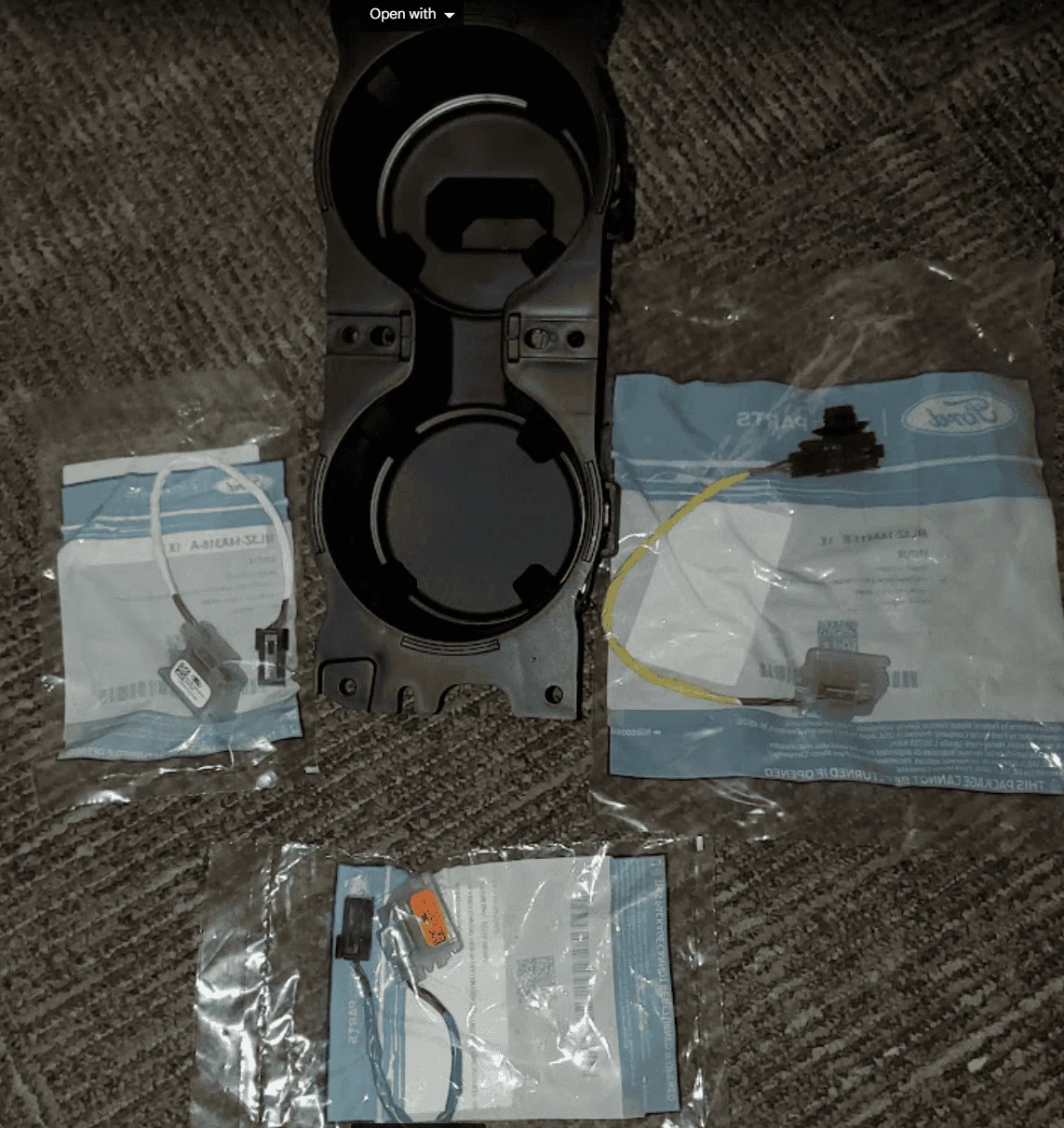

Items are front and rear floor lamps, cup holder, glovebox, media bin

Did you get your order yet. I ordered from them as well but everything still says "on order"



[nall]

Also a wire tie with an attached Christmas tree (or similar) to fit into the metal plates for the drivers side and both rear footwells.

I got some of these and found connecting them to the connector (not the wire) worked best. I am hoping this mimics what it looks like if you have the connectors from the factory.



[HammaMan]

Did you get your order yet. I ordered from them as well but everything still says "on order"

they sent an email stating 2 things were OOS -- after a few days I emailed them saying WTH is the order and they wanted a reply to the original email saying to ship IS items. So by the time they actually shipped it only 4 of 7 parts arrived. I told them that's a really dumb strategy and going forward they should ship in-stock and let the customer decide to do with the remaining items.



[Texas2022XLT]

they sent an email stating 2 things were OOS -- after a few days I emailed them saying WTH is the order and they wanted a reply to the original email saying to ship IS items. So by the time they actually shipped it only 4 of 7 parts arrived. I told them that's a really dumb strategy and going forward they should ship in-stock and let the customer decide to do with the remaining items.

I’m still waiting on the driver side light…



[JHForman812]

they sent an email stating 2 things were OOS -- after a few days I emailed them saying WTH is the order and they wanted a reply to the original email saying to ship IS items. So by the time they actually shipped it only 4 of 7 parts arrived. I told them that's a really dumb strategy and going forward they should ship in-stock and let the customer decide to do with the remaining items.

This is why I choose my local dealer, they let you wait the back order out and call you when it comes in. My dealer gets close to online prices and there’s no shipping charge so it’s probably really close to the same price.



[Texas2022XLT]

This is why I choose my local dealer, they let you wait the back order out and call you when it comes in. My dealer gets close to online prices and there’s no shipping charge so it’s probably really close to the same price.

John is 100% right! My driver side is my dealer and they match parts.ford.com pricing which is awesome.



[HammaMan]

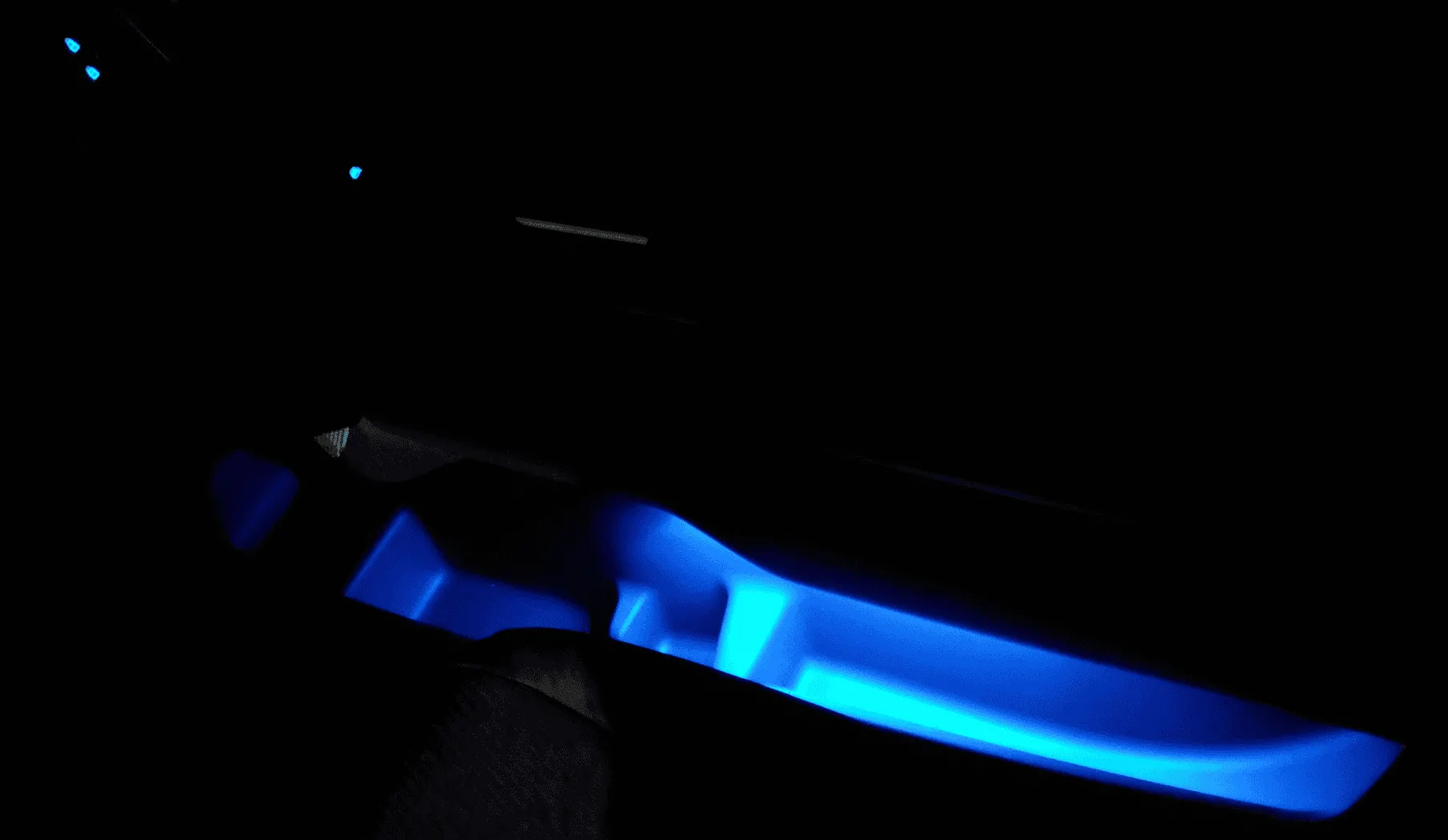

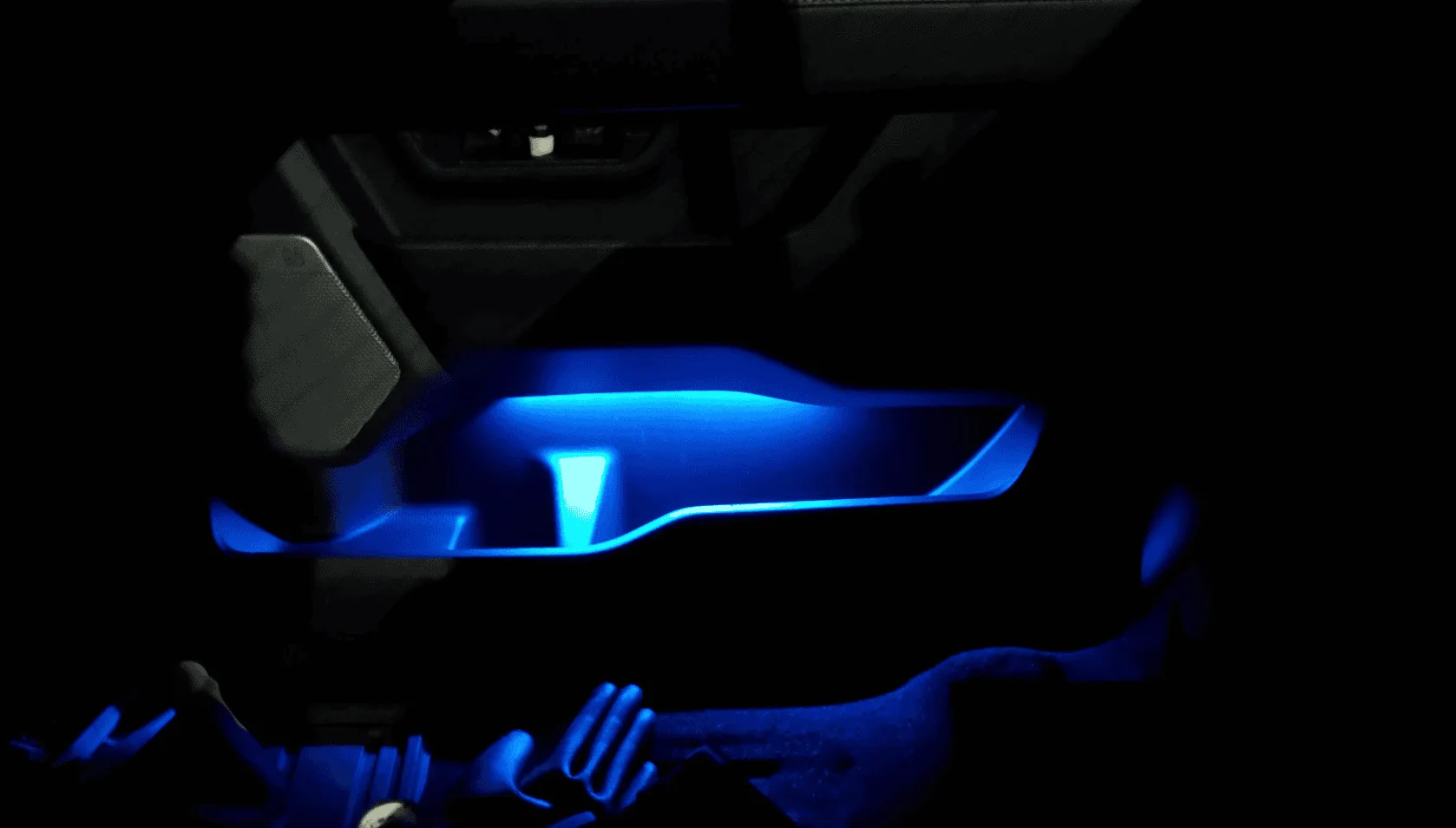

I hate my dealer, the only time I will acknowledge they exist is to say, "I HATE MY DEALER". I wallet vote often. I have so much going on that I get to things when I get to them. So long as the parts show up, they'll get put in. OTOH, I've got ambient lighting in my doors

pay no attention to the tools, still working on other things

Much more subtle in person. These are on the vehicle's dimming circuit via dash lights, not on the ambient circuit. They're so subtle that being able to control them isn't a big deal, though they do dim with the dash light dimming circuit. Color is 'ice blue' and not blue blue. Not a perfect teal of the factory, but GudNuff ™



[HammaMan]

Update on floor lighting... (don't have glovebox / media box lights to compare yet)

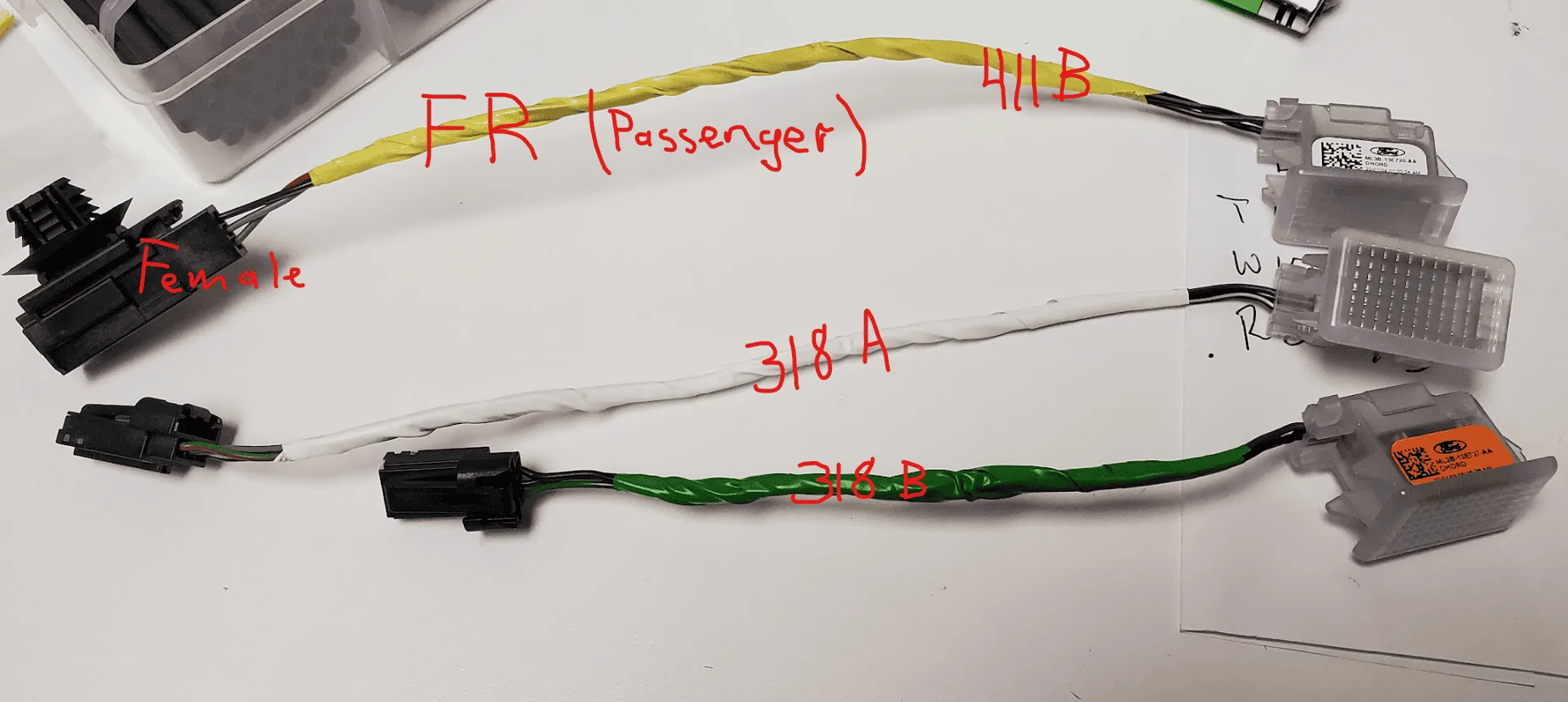

ML3Z-14A411-B (Front Pass) - Part is unique, it's the female to the other's male plugs
ML3Z-14A318-A (Longer rear (white tape), can work in 3 spots w/ excess wire, both rears have same connectors**)
ML3Z-14A318-B (shorter rear (green tape), perfect for cutting for driver position if part not available, such as I'm dealing with @Texas2022XLT )

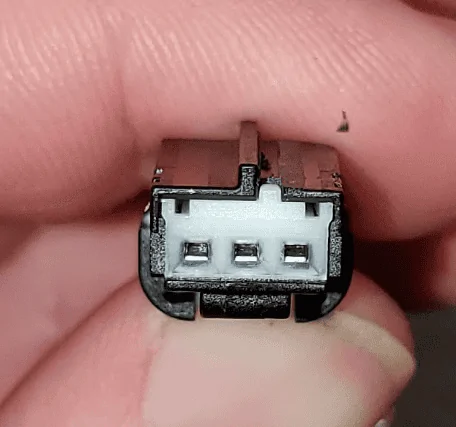

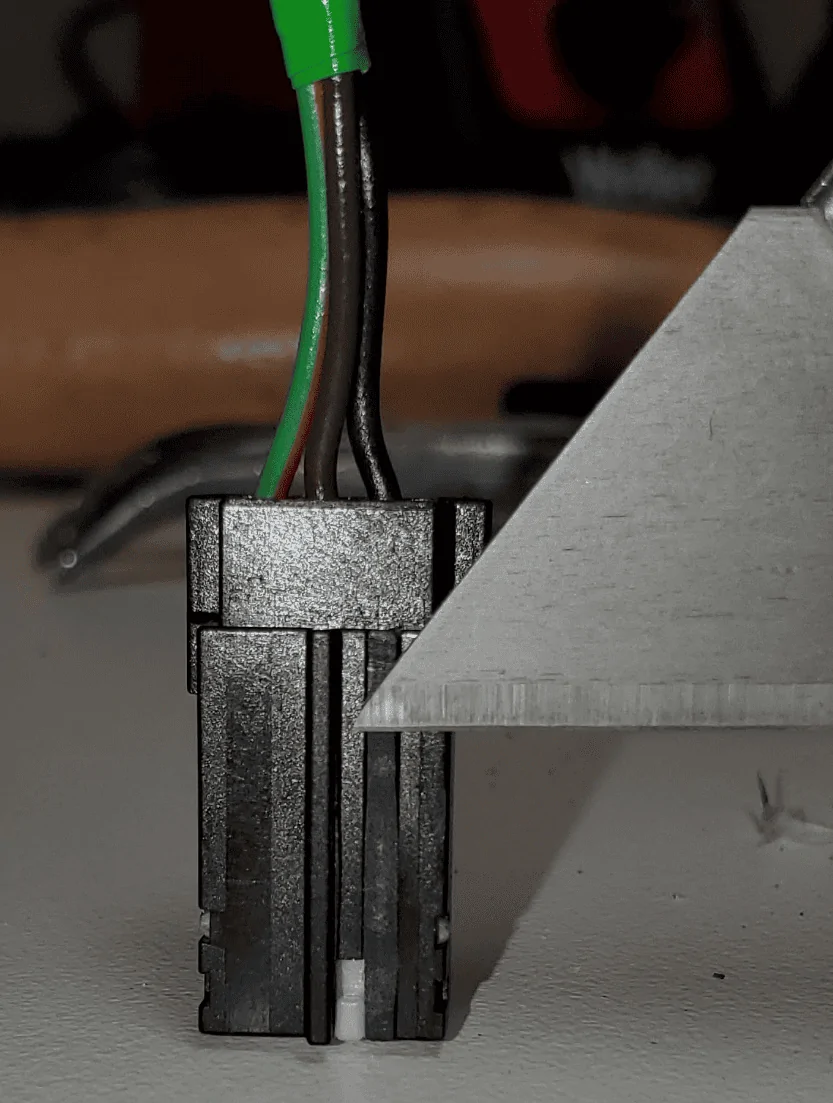

** (ML3Z-14A318-B) Rear part connector can be shaved down to make it fit driver - cut this notch off (nice new razor blade, easily shaves right off!)

The result - perfect fit

In typical ford fashion, 4 unique parts that with proper vehicle harness design, could have ALL been the exact same part. Keep in mind, unique parts cost $10k / piece on average to have in the system, and that's not counting the fact that it's easier to produce 4 of the same part than 4 unique parts plus the economies of scale. This is why tesla is kicking the OEM's asses right now.



[mrtull]

Full Disclosure... this post is not for a finished project, but one step. However I figured I'd throw out some basic stuff that noobs such as myself might not know. If you would have told me three months ago I'd be removing panels and covers to mess with electrical, I'd say you were smoking something! And here I am. A MILLION thanks to all who posted.

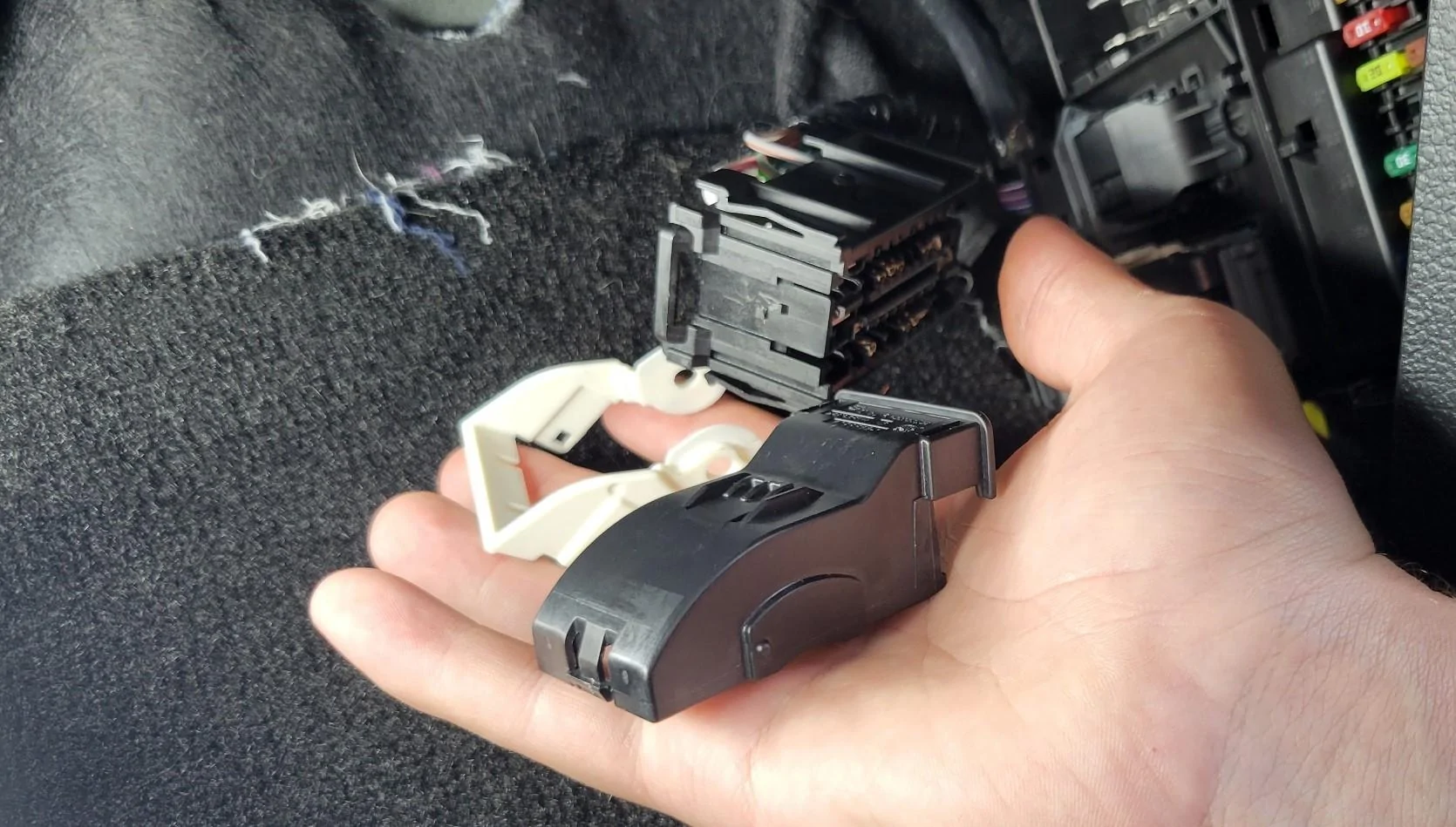

First off.... The C2280C connector harness can be snapped apart for easy insertion of the red jumper wire provided by John. Thanks to my son who grew up on Legos and K'nex for seeing this because I did not. It snapped back together, no problems at all.

Second... orientation of the jumper. It was pointed out that the jumper wire can be rotated to match the other wires, and I wanted to reaffirm that point. Turns out that one face of the male jumper end has an extruding bump. I kept trying to point that bump up so the jumper could lay flat in the slot. That bump is actually to help lock it in place, so it points down. I didn't get a very good picture, but this is how I worked on lining it up. The bump doesn't really show though:

Now that you've gotten the jumper installed, it's time to do the passenger side light, which is the yellow wrap with the black connector. @Texas2022XLT pointed out how it will be attached to a holder but I wasn't sure what he meant. Now I get it... Ford spent money including a piece to hold the wire to punish those who did not spend money on the ambient lighting! I suppose letting it just dangle would have been too obvious:

Once you've pulled down the liner, the square for insertion is unmistakable:

And after FORscan changes, it works! A huge thank you to John who started all this ruckus, and I'll post back after I'm completely done if there's anything that might be helpful to somebody. I once said I feel like a Kindergartener in here... Guess who's going to 1st grade baby!!



[JHForman812]

Full Disclosure... this post is not for a finished project, but one step. However I figured I'd throw out some basic stuff that noobs such as myself might not know. If you would have told me three months ago I'd be removing panels and covers to mess with electrical, I'd say you were smoking something! And here I am. A MILLION thanks to all who posted.

First off.... The C2280C connector harness can be snapped apart for easy insertion of the red jumper wire provided by John. Thanks to my son who grew up on Legos and K'nex for seeing this because I did not. It snapped back together, no problems at all.

Second... orientation of the jumper. It was pointed out that the jumper wire can be rotated to match the other wires, and I wanted to reaffirm that point. Turns out that one face of the male jumper end has an extruding bump. I kept trying to point that bump up so the jumper could lay flat in the slot. That bump is actually to help lock it in place, so it points down. I didn't get a very good picture, but this is how I worked on lining it up. The bump doesn't really show though:

Now that you've gotten the jumper installed, it's time to do the passenger side light, which is the yellow wrap with the black connector. @Texas2022XLT pointed out how it will be attached to a holder but I wasn't sure what he meant. Now I get it... Ford spent money including a piece to hold the wire to punish those who did not spend money on the ambient lighting! I suppose letting it just dangle would have been too obvious:

Once you've pulled down the liner, the square for insertion is unmistakable:

And after FORscan changes, it works! A huge thank you to John who started all this ruckus, and I'll post back after I'm completely done if there's anything that might be helpful to somebody. I once said I feel like a Kindergartener in here... Guess who's going to 1st grade baby!!

Thank Ford for starting this! I just wanted my cup holder lights back in my super duty lol



[HammaMan]

My media bin connector was dead, going to yank out the passenger seat to get to C3133 -- I suspect pin 19 is installed as those 2 lamps work as they should but pin 22 on the truck side may be missing as though present, it's dead....



[volvofan94]

Completed my installation earlier this evening and got to say it looks great. Big thank you to @JHForman812 for your help with the harnesses and guidance with installation, very much appreciated!

Couple observations from my install:
1. For the Media bin light harness I added it to the harness which powers the large storage console box light. Threw me for a bit of a curve ball when I got everything together and the cup holder lights didn’t come on. A quick tear down then rewiring fixed it. Now I have all lights come on when the doors are open and interior lights are on. Which leads me to question 2.

2. What FORscan changes are needed to have the footwell lights on when driving? I want them to act as if they were part of the dash illumination system; when your headlights/parking lights are on the footwell/cup holder lights are on too. Mine turn on then off with the interior lights except for the Media Bin light, which is on while driving. Tomorrow I’ll change the setting to ALSS Variant 1 and see if that fixes it. However, I wasn’t sure if other FORscan changes were needed.

3. Are we able to control the brightness of the lights though the 12” radio screen?


Thanks!!



[Texas2022XLT]

Completed my installation earlier this evening and got to say it looks great. Big thank you to @JHForman812 for your help with the harnesses and guidance with installation, very much appreciated!

Couple observations from my install:
1. For the Media bin light harness I added it to the harness which powers the large storage console box light. Threw me for a bit of a curve ball when I got everything together and the cup holder lights didn’t come on. A quick tear down then rewiring fixed it. Now I have all lights come on when the doors are open and interior lights are on. Which leads me to question 2.

2. What FORscan changes are needed to have the footwell lights on when driving? I want them to act as if they were part of the dash illumination system; when your headlights/parking lights are on the footwell/cup holder lights are on too. Mine turn on then off with the interior lights except for the Media Bin light, which is on while driving. Tomorrow I’ll change the setting to ALSS Variant 1 and see if that fixes it. However, I wasn’t sure if other FORscan changes were needed.

3. Are we able to control the brightness of the lights though the 12” radio screen?


Thanks!!

Did you make the Forscan changes in the beginning of this thread? The lights should stay on when your lights are on, mine do and yes you can adjust the brightness from the 12 in screen.



[JHForman812]

Did you make the Forscan changes in the beginning of this thread? The lights should stay on when your lights are on, mine do and yes you can adjust the brightness from the 12 in screen.

I second this, you’re missing something also note I had an error in the part that had the changes and it’s been fixed.
