XLT trucks with push button start cup holder/ambient lighting

[Puffy929]

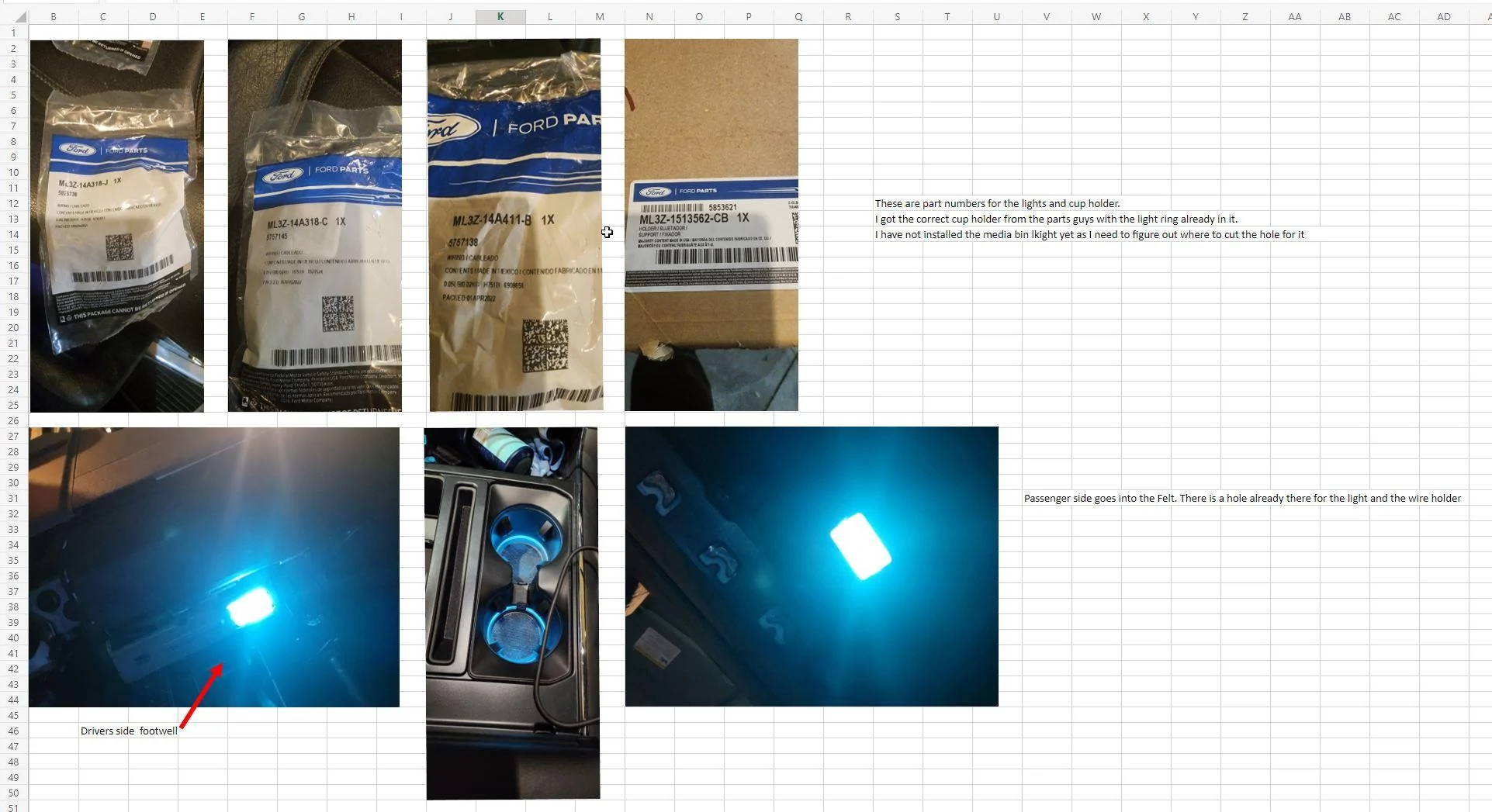

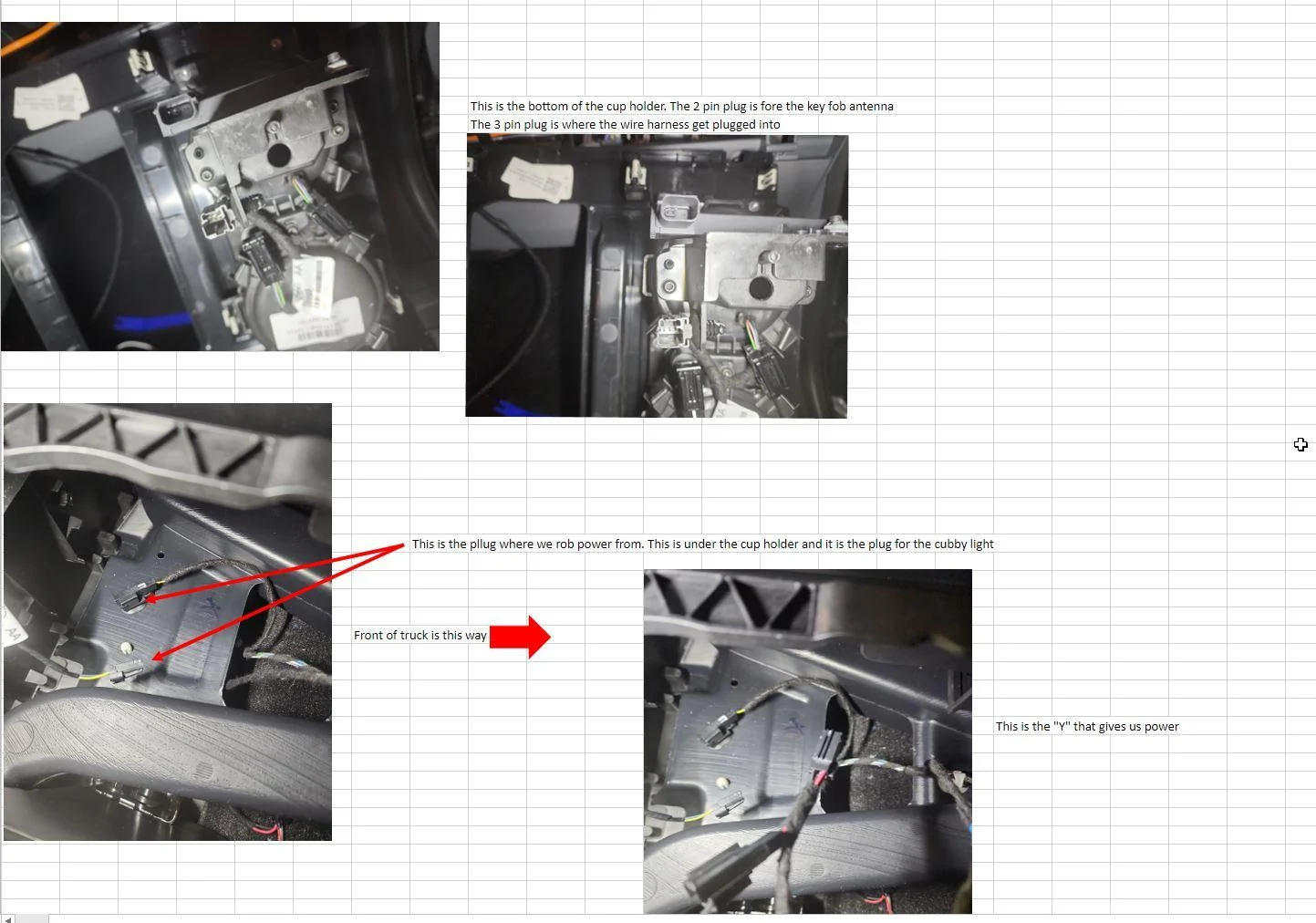

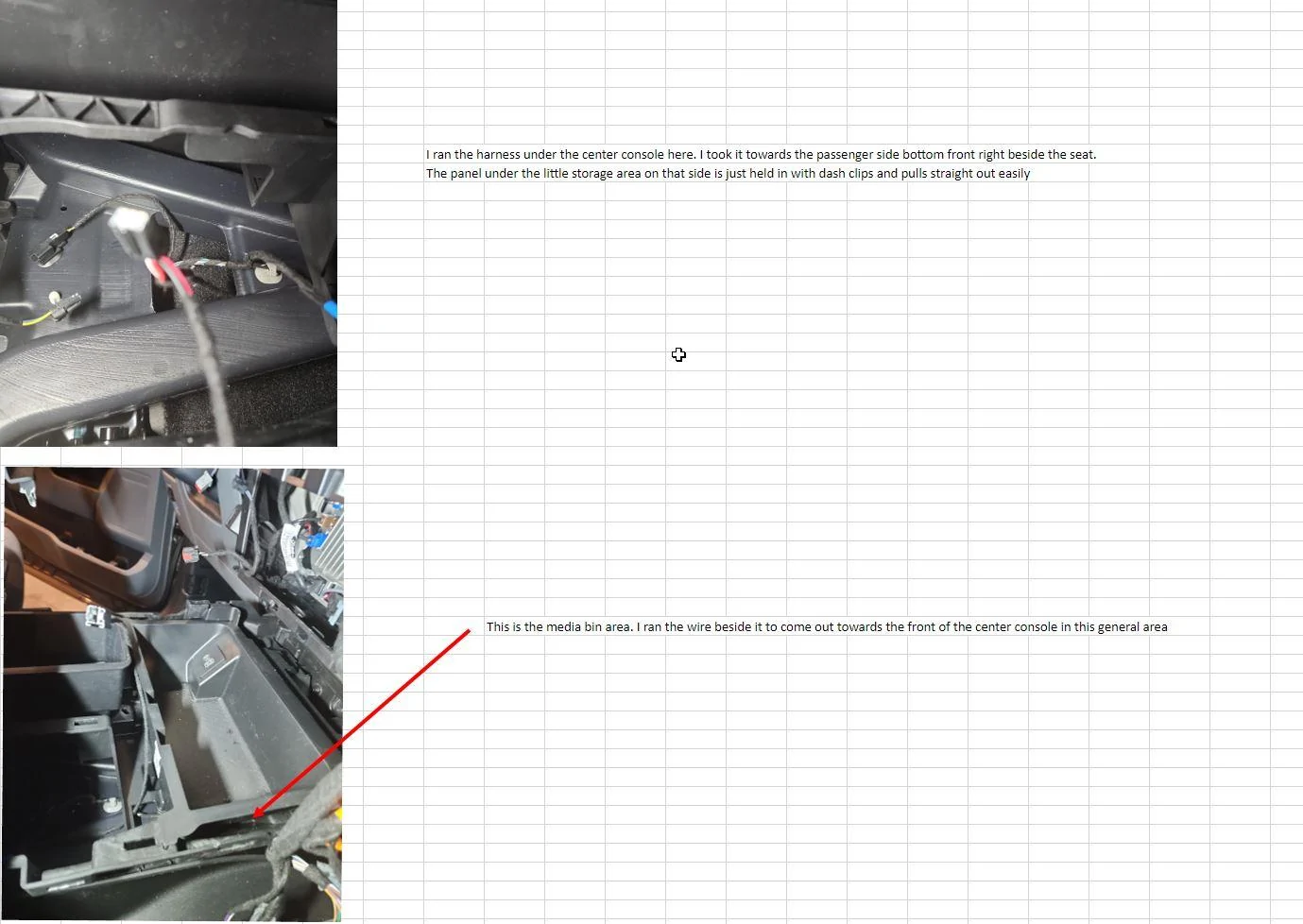

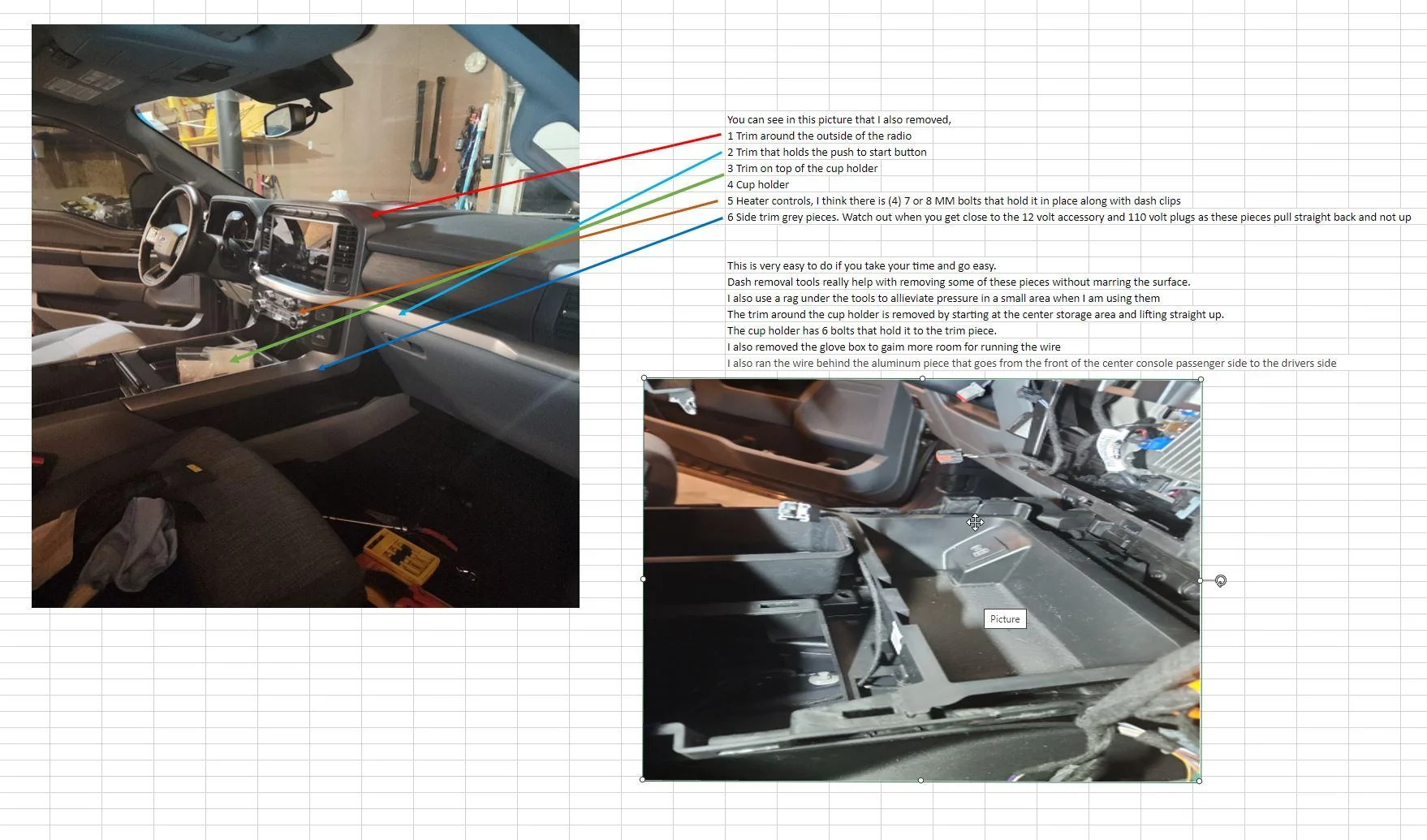

Yes. They do. I had to wait an extra week for pins to show up. I will try and get some pictures and tips posted tonight if work cooperates and let's me leave on time. I can post from my phone but it's hard to see what pics are what.

Sponsored



[JHForman812]

Yes. They do. I had to wait an extra week for pins to show up

Glad its not just me that screwed by this! I always order mor parts when i get down to 25 connectors left. and well they didnt ship for over a week so now i wait.



[Puffy929]

I ordered pins for parking sensors. Ended up ordering the pig tails from the dealership because I wasn't sure when the pins would get here. Got the pigtail yesterday and the pins today. Ordered last Monday for the pins and pigtail on Thursday.



[Texas2022XLT]

Just ordered harnesses from @JHForman812 and OEM parts ?
Friendly reminder to @Puffy929 and @Texas2022XLT to please post any pics/instructions to aid the install, thanks guys!

Check out this drawing from the other thread very detail on pulling apart the trim.
Post in thread 'Cup holder light installation/media bin light/glove box light'
https://www.f150gen14.com/forum/thr...ia-bin-light-glove-box-light.8385/post-312709
Go to page 59 post 880 by Jmeo

Also a side note on the top trim piece. The part that goes up by the 12v outlet…watch when sliding the trim in as there is a clip that sticks out and can scratch the dash there.



[JHForman812]

Check out this drawing from the other thread very detail on pulling apart the trim.
Post in thread 'Cup holder light installation/media bin light/glove box light'
https://www.f150gen14.com/forum/thr...ia-bin-light-glove-box-light.8385/post-312709
Go to page 59 post 880 by Jmeo

I think the bigger issue is going to be taking the connectors apart, im hoping members who do this mod will take good pictures of that step.



[Texas2022XLT]

I think the bigger issue is going to be taking the connectors apart, im hoping members who do this mod will take good pictures of that step.

Yeah planned on that today but instead of the jumper coming to my house it went to San Antonio…damn mail here in Texas. Hope it comes tomorrow and if so I’ll take pics.



[JHForman812]

Yeah planned on that today but instead of the jumper coming to my house it went to San Antonio…damn mail here in Texas. Hope it comes tomorrow and if so I’ll take pics.

I think shipping is screwed up all over the place honestly lol



[Puffy929]

I wish I could find more pictures but my phone is not cooperating with me. If I can find them on my phone, I will post more pictures.

I really hope this helps you guys out. And I should really proof read before I delete the spreadsheet next time. This is what happens when you are awake for 36 hours.



[Texas2022XLT]

I wish I could find more pictures but my phone is not cooperating with me. If I can find them on my phone, I will post more pictures.

I really hope this helps you guys out. And I should really proof read before I delete the spreadsheet next time. This is what happens when you are awake for 36 hours.

Looking at John’s sheet on page one that doesn’t look like the correct C2280C connector?



[b bo]

Looking at John’s sheet on page one that doesn’t look like the correct C2280C connector?

I believe the No connector folks plug into the C2280E Connector.



[Texas2022XLT]

I believe the No connector folks plug into the C2280E Connector.

Ah sorry I had the connectors.



[pavementends]

Do you guys like any particular trim removal tools or kit off Amazon for this job? Will I need any of these "trim trees" I call them...



[Texas2022XLT]

Do you guys like any particular trim removal tools or kit off Amazon for this job? Will I need any of these "trim trees" I call them...

I used bojo tools but I’m sure any will work. I will say the ones under the glove box where tight to pull out.



[Puffy929]

I got an entire dash kit from Amazon about 3 years ago for another job.



[pavementends]

Any tips on the best website to order these OEM light parts, please?
