There’s a couple screws you remove in the visor and the front just pulls down. Did you ever get the PDF of the instructions from Boosted Grey Goose? I’m not sure if all but the headliner is held in place at the front with the visor screws and strong magnets.

Is the fusebox covered ?

Sponsored



[Snakedoctor]

Is the fusebox covered ?

Yes. Look up superduty Upfitter relay box. It’s a whole black box with lid.



[Infotroll]

Yes. Look up superduty Upfitter relay box. It’s a whole black box with lid.

Thanks but I was asking about the inside passenger . It look like a big part and the lid would not cover it



[Snakedoctor]

Thanks but I was asking about the inside passenger . It look like a big part and the lid would not cover it

I’m not understanding what you’re talking about. Can you show a picture of what you’re referring to?



[Infotroll]

I’m not understanding what you’re talking about. Can you show a picture of what you’re referring to?

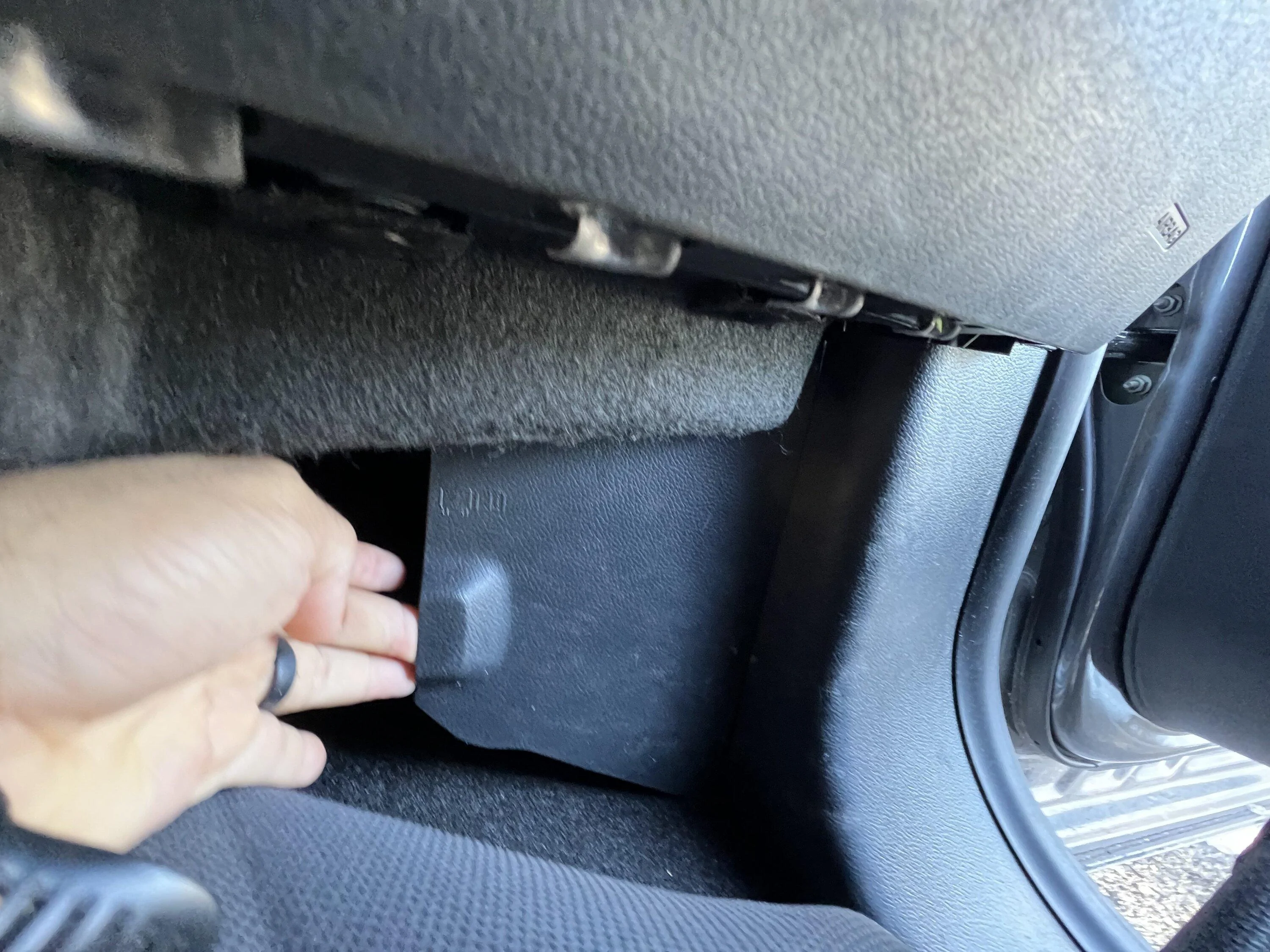

Are you able to put the door back after putting that part in the fuse box



[Snakedoctor]

Are you able to put the door back after putting that part in the fuse box

The relay goes under your hood. Does not interfere with that fuse box.



[Infotroll]

Great thanks was looking at the video and saw them putting that inn place video



[Snakedoctor]

Great thanks was looking at the video and saw them putting that inn place video

You have to add a wire to a connector in there that’s it. They didn’t put a whole relay box in there.



[billp9]

Just finished installing the upfitter switches in my 2021 F150 Lariat. It took awhile but got it done. It cost me just over $400 for the entire job. My current one was gray with a rear sliding window so got a gray one out of a 2023 F250 with a rear slider.
Overhead console from 2023 f250 from a salvage yard tax and shipping $150
Relay/breaker box new for a 2022 F250. 2022 was cheaper than one
for a 2023 $160
Add a fuse $8
Wire connectors and pins from digit key $20
Wire bought extra 10 different colors amazon $30
Crimper for crimping the pins amazon $24
Misc tape , wire loom etc. $20
Total $412

Made my own wiring harness. Did need some help from my son finding the illumination connection in the fuse panel.
Just took awhile but couldn't see spending $700 for a wiring harness and relay/breaker box. plus another $600+ for an overhead console.



[Snakedoctor]

Just finished installing the upfitter switches in my 2021 F150 Lariat. It took awhile but got it done. It cost me just over $400 for the entire job. My current one was gray with a rear sliding window so got a gray one out of a 2023 F250 with a rear slider.
Overhead console from 2023 f250 from a salvage yard tax and shipping $150
Relay/breaker box new for a 2022 F250. 2022 was cheaper than one
for a 2023 $160
Add a fuse $8
Wire connectors and pins from digit key $20
Wire bought extra 10 different colors amazon $30
Crimper for crimping the pins amazon $24
Misc tape , wire loom etc. $20
Total $412

Made my own wiring harness. Did need some help from my son finding the illumination connection in the fuse panel.
Just took awhile but couldn't see spending $700 for a wiring harness and relay/breaker box. plus another $600+ for an overhead console.

Good stuff man! Did you happen to take any photos of the harness you made?

If I had to do it again I would look into the possibility of making my own.

I’m considering adding the Auxbeam panel someplace else as well for other lights since I have my ditch lights connected to a switch for each side. Takes up 3 switches just for those, left, right, and backlight.



[billp9]

Thank you.
Didn't take any pictures. Wrapped the ten wires in the cab with electrical type and the wires out of the cab were wrapped and then put in a wire loom. Sounds like you have your truck decked out really nice,



[evoslayer]

Just finished installing the upfitter switches in my 2021 F150 Lariat. It took awhile but got it done. It cost me just over $400 for the entire job. My current one was gray with a rear sliding window so got a gray one out of a 2023 F250 with a rear slider.
Overhead console from 2023 f250 from a salvage yard tax and shipping $150
Relay/breaker box new for a 2022 F250. 2022 was cheaper than one
for a 2023 $160
Add a fuse $8
Wire connectors and pins from digit key $20
Wire bought extra 10 different colors amazon $30
Crimper for crimping the pins amazon $24
Misc tape , wire loom etc. $20
Total $412

Made my own wiring harness. Did need some help from my son finding the illumination connection in the fuse panel.
Just took awhile but couldn't see spending $700 for a wiring harness and relay/breaker box. plus another $600+ for an overhead console.

Do you know the part number to the relay / breaker box?



[billp9]

Trying to see if I can have one switch to convert 4x4 low to 2x4 low. I posted it on another post. I use that when moving my trailer in tight surroundings.

Do you know the part number to the relay / breaker box?



[SpaceWhiteF150]

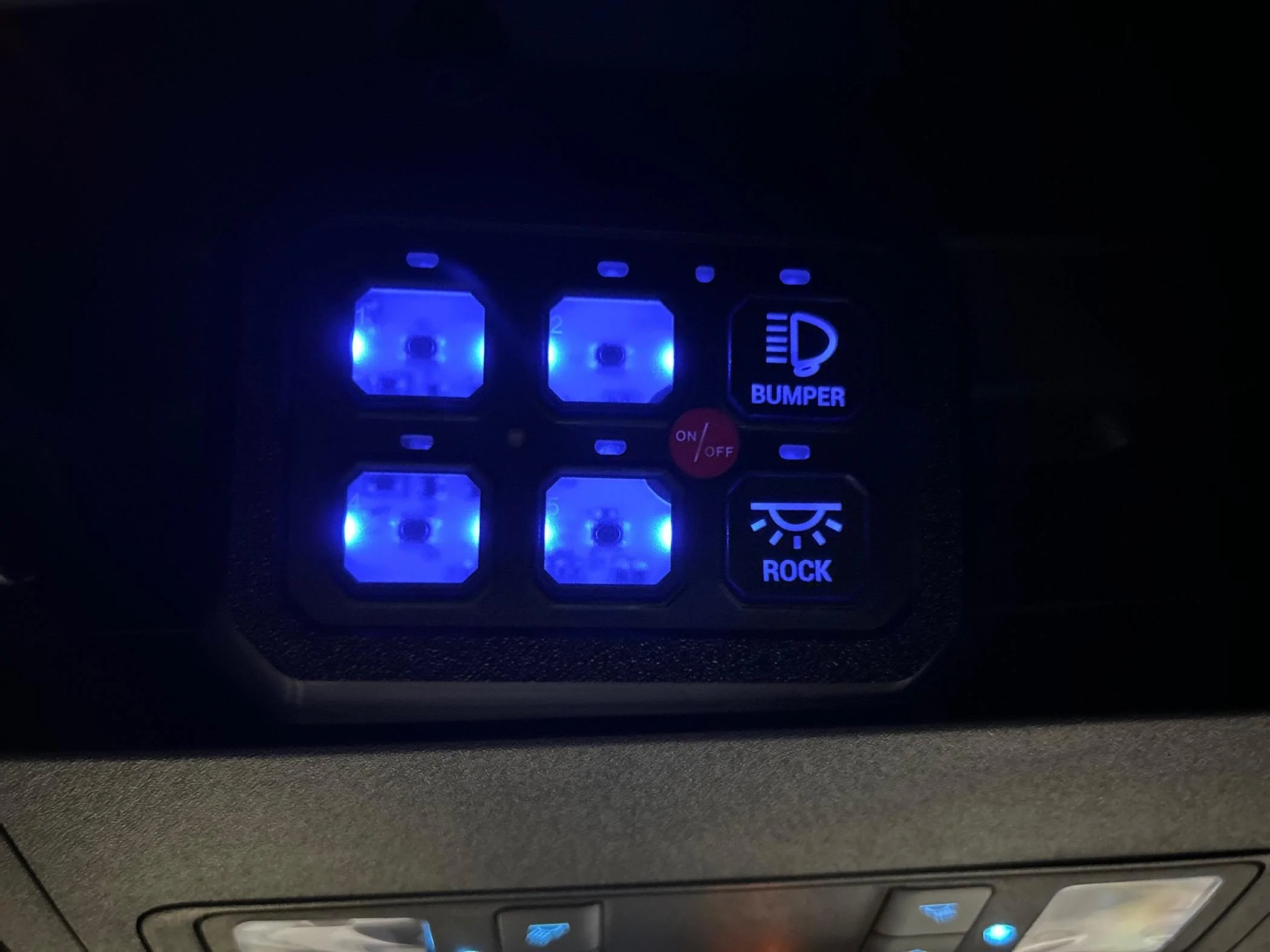

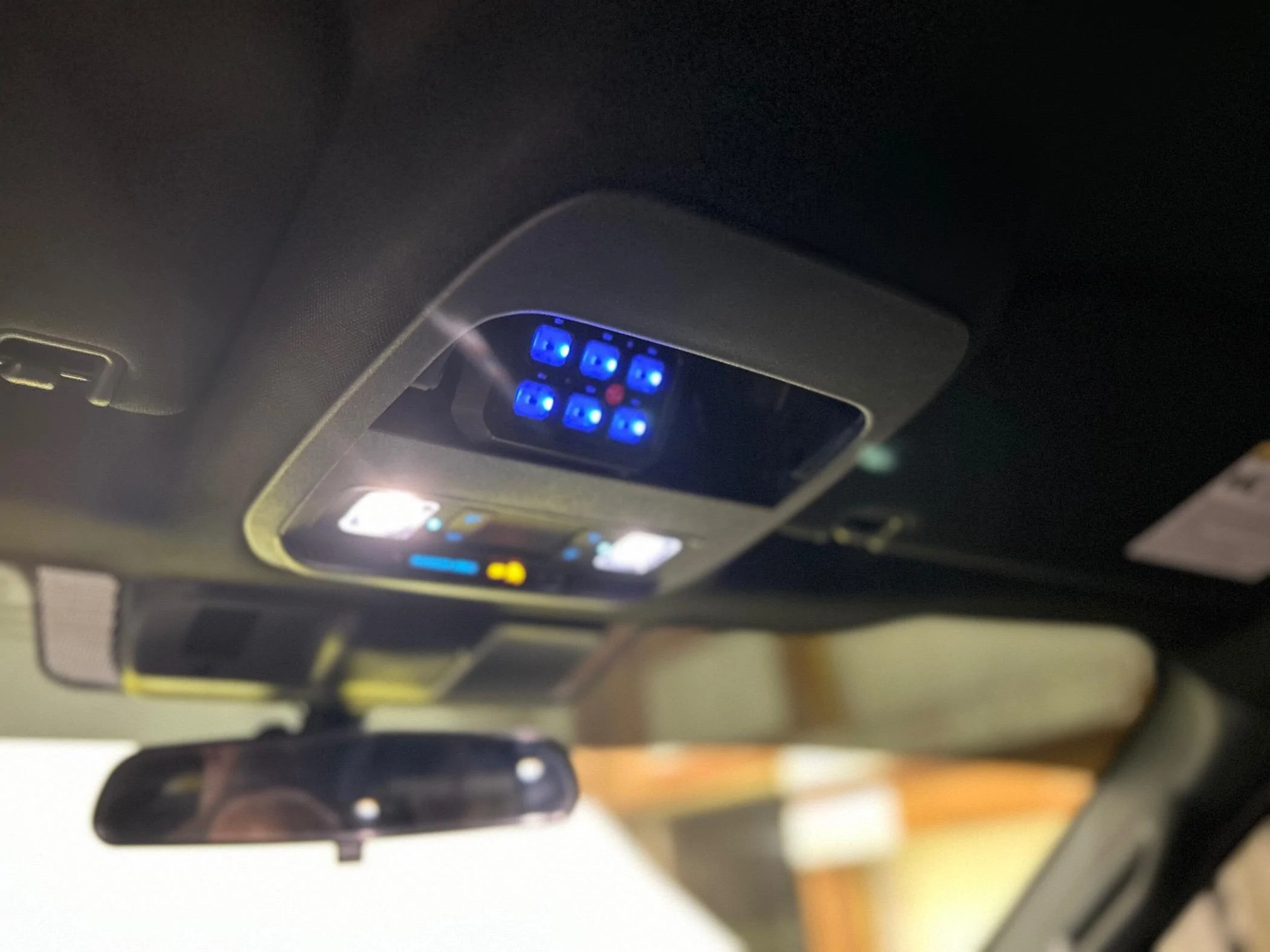

I did the aux beam switch panel. Seems like a much more cost effective route. They offer 6 gang and 8 gang. I’m currently working on a 3D printed bracket to hold the switch panel inside the sunglasses holder!



[billp9]

I did the aux beam switch panel. Seems like a much more cost effective route. They offer 6 gang and 8 gang. I’m currently working on a 3D printed bracket to hold the switch panel inside the sunglasses holder!
