Reverse Camera Options

[farmtruckman]

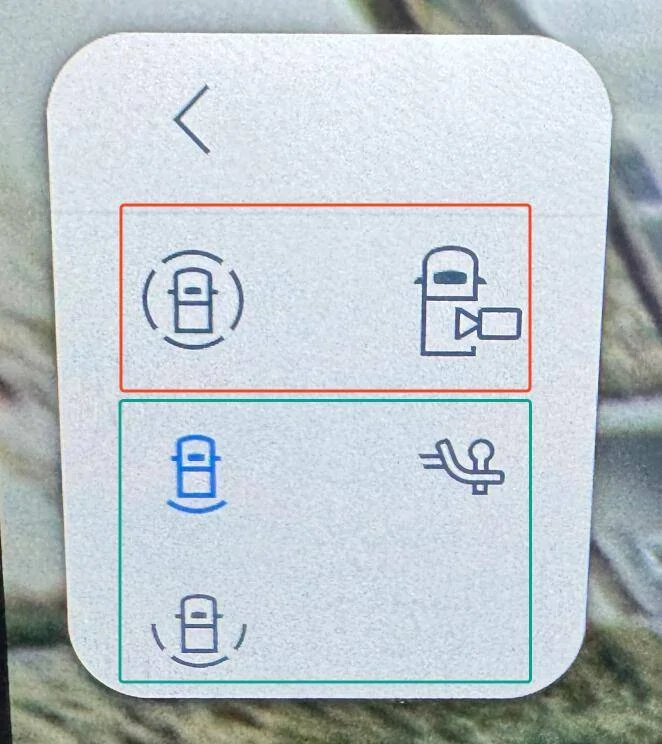

Hello, I have a truck without the 360 cameras and want to understand why my reverse camera shows me options which my truck doesn't have? The ones in green work properly while the ones in red for obvious reasons do nothing. I am not sure if my configuration in APIM needs correction or IPMA. The view below is from my truck in R gear.

Appreciate your help gurus.

Sponsored



[rugedraw]

I would start here in the APIM and make sure 360 view is disabled in all APIM locations; not sure which of these would trigger that button to show, so I'd check to make sure they're all disabled jic.

Also check here and make sure the bed camera is disabled:



[farmtruckman]

I would start here in the APIM and make sure 360 view is disabled in all APIM locations; not sure which of these would trigger that button to show, so I'd check to make sure they're all disabled jic.

Also check here and make sure the bed camera is disabled:

Thanks @rugedraw for looking into it. Here are my values:

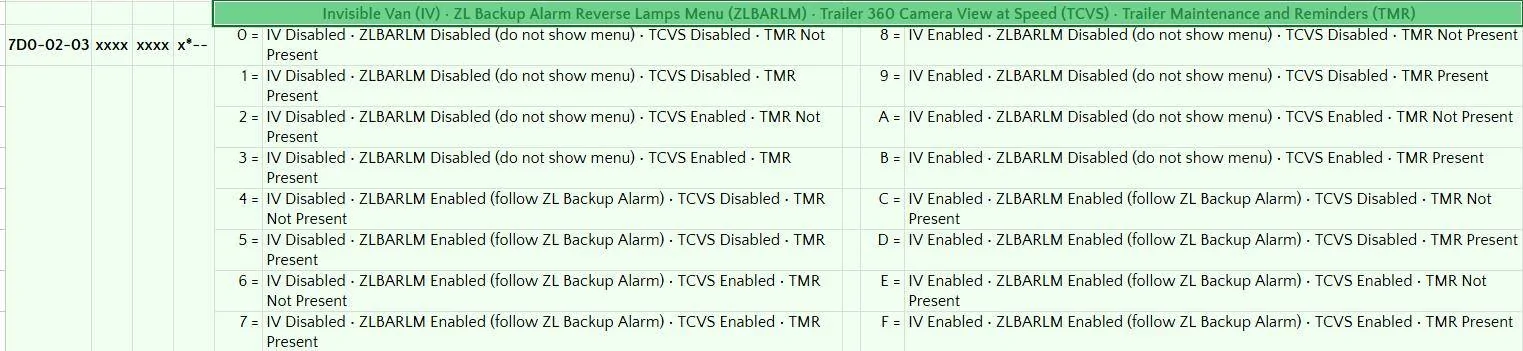

7D0-01-01 - 0141 0002 FD1A - so value is F (should be changed to E?)
7D0-01-02 - 0300 C62B 9866 - so value is 0 (no change)
7D0-02-03 - A800 0001 0186 - so values are 0 and 1 (no change)
7D0-03-01 - 5443 0303 037B - so value is 3 (should be changed to 2?



[rugedraw]

7D0-01-01 - 0141 0002 FD1A - so value is F (should be changed to E?)

E would mean you have a front camera, and RVC is rear camera split view, so I would think that is safe to leave enabled, so I'd try try an A here.

7D0-03-01 - 5443 0303 037B - so value is 3 (should be changed to 2?

Based on what you have now, a 2 is what I would try.



[farmtruckman]

@rugedraw Thanks for your input brother.

So I tried these values and luckily stumbled upon my over sight from yesterday. I was supposed to look at 7D0-01-03 but instead looked at 7D0-03-01. But no harm done.

I changed 7D0-01-01 - 0141 0002 FD1A to 7D0-01-01 - 0141 0002 ADCA and this worked well. No changes made to 7D0-01-02 and 7D0-02-03. For the 7D0-01-03, my values are: 524D 00E5 0E6D where the value is E which seems correct that IOD Bed Camera is disabled.

After change to 7D0-01-01, the bed camera still shows as enabled and the reverse split view (3 corners covered) seems to be missing in the camera button view.

Reverse (with the one in red doing nothing):

Camera button (with the one in red doing nothing):



[SilverPigeon]

Have you enabled cameras at speed? If so, check that the CHMSL at speed is disabled in the IPMA:

706-02-02

xxx*

xxxx

xx--

FeatureCfg_DPAC_ViewCtlAtSpeed_Hitch (FCDPACVCASH) • FeatureCfg_DPAC_ViewCtlAtSpeed_Aux (FCDPACVCASA) • FeatureCfg_DPAC_ViewCtlAtSpeed_CHMSL (FCDPACVCASCHMSL) • FeatureCfg_DPAC_ViewCtlAtSpeed_RCOD (FCDPACVCASRCOD)



[farmtruckman]

Have you enabled cameras at speed? If so, check that the CHMSL at speed is disabled in the IPMA:

706-02-02

xxx*

xxxx

xx--

FeatureCfg_DPAC_ViewCtlAtSpeed_Hitch (FCDPACVCASH) • FeatureCfg_DPAC_ViewCtlAtSpeed_Aux (FCDPACVCASA) • FeatureCfg_DPAC_ViewCtlAtSpeed_CHMSL (FCDPACVCASCHMSL) • FeatureCfg_DPAC_ViewCtlAtSpeed_RCOD (FCDPACVCASRCOD)

Yes, I have enabled it.
My value for 706-02-02 is 805F CE00 00BE



[SilverPigeon]

Change it to

706-02-02

xxx9

xxxx

xx--

If you don't want the aux cam button which does nothing, and disables the CHMSL (bed) camera view at speed. Reboot the IPMA and APIM. Let us know the outcome.
