@Snakebitten shared his dashboards before, but there were some issues with the PIDs getting mixed up. There have been some updates to the app since then, so any chance we could use this thread to exchange dashboards? (I *totally* understand if y'all don't want to publicly upload your dashboards for fear of having to "support" them once they are out in the wild.)

It's just a thought.
Sponsored



Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
I have absolutely no problem sharing my dashboard.
I know how much time was spent dolling up the standard gauges. And I purposely used spacing and color contrasts to help me discern quickly.

If you import my dashboard, you might have to tweak the spacing and the mapping anyways, although some percentage of folks reported it all mapped fine.

Anyways, I'll edit this post later with an attachment that will look like a pdf file. But once you download it you would need to change the file extension to the native OBDLink file extension. I think it's ".stg"


JediNut

Well-known member
First Name
Emmett
Joined
Aug 4, 2021
Threads
35
Messages
404
Reaction score
399
Location
Nashville, TN
Vehicles
'21 Ford F-150 Lariat PowerBoost
Occupation
Old Time Geek
I have absolutely no problem sharing my dashboard.
I know how much time was spent dolling up the standard gauges. And I purposely used spacing and color contrasts to help me discern quickly.

If you import my dashboard, you might have to tweak the spacing and the mapping anyways, although some percentage of folks reported it all mapped fine.

Anyways, I'll edit this post later with an attachment that will look like a pdf file. But once you download it you would need to change the file extension to the native OBDLink file extension. I think it's ".stg"
Yeah... I know it acted weird when I imported your last one. I am hoping that the app updates will help with that. I think we had a little issue with the alignment of the gauges going from Android (you) to iPhone (me). But... I know you put a TON of time into laying it all out because I tried doing just a few gauges and the OCD part of me just couldn't get them aligned as nicely as you did! :)

Thanks!


PB2021

Well-known member
First Name
Rob
Joined
Sep 3, 2021
Threads
2
Messages
297
Reaction score
250
Location
Canada
Vehicles
2021 F150 Lariat Powerboost

Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
Snakebitten are you able to share this latest version of your gauge setup.
Sure thing.
Remember to change the file extension to stg before importing. (this is NOT a pdf file)
And put a checkmark in "user defined pids" if you want the OAR PID


Attachments


Sponsored

PB2021

Well-known member
First Name
Rob
Joined
Sep 3, 2021
Threads
2
Messages
297
Reaction score
250
Location
Canada
Vehicles
2021 F150 Lariat Powerboost
Sure thing.
Remember to change the file extension to stg before importing. (this is NOT a pdf file)
And put a checkmark in "user defined pids" if you want the OAR PID
Great thanks so much!


Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
My pleasure.

From reports, some imports come off with nary a hitch. Maybe a bit of crowding due to differences in screen resolution.

But others will lose the PID mapping. That's why I listed the pid mapping in the other thread.

Hope it goes smooth enough for you


oneinch

Well-known member
Joined
Apr 17, 2022
Threads
36
Messages
629
Reaction score
565
Location
Philly area
Vehicles
2022 F150 Powerboost, 2022 Maverick Lariat Lux
Is this what you want to know?

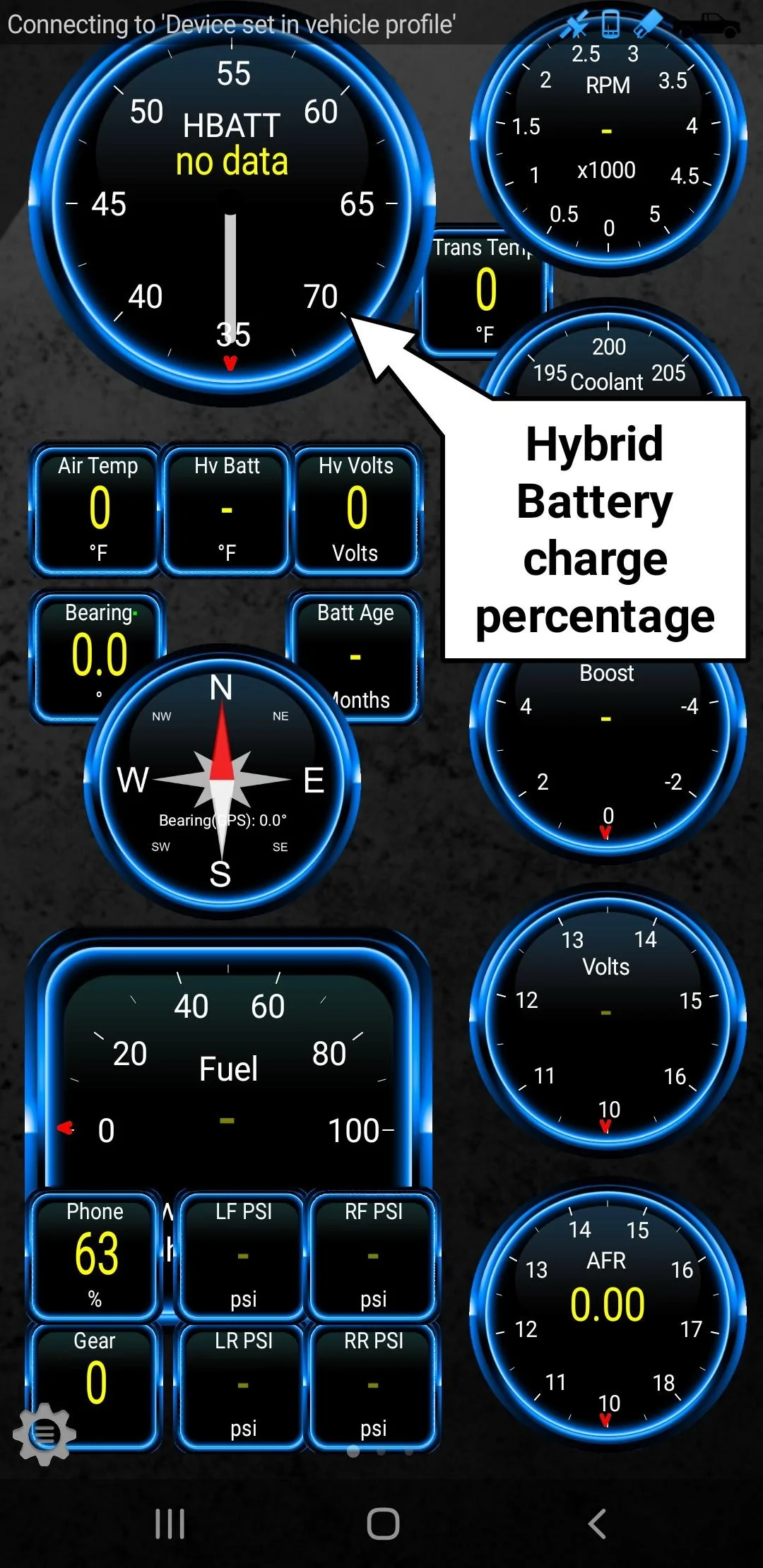

Ford F-150 PID for Hybrid Screenshot_20230429-000524_Torque-picsay

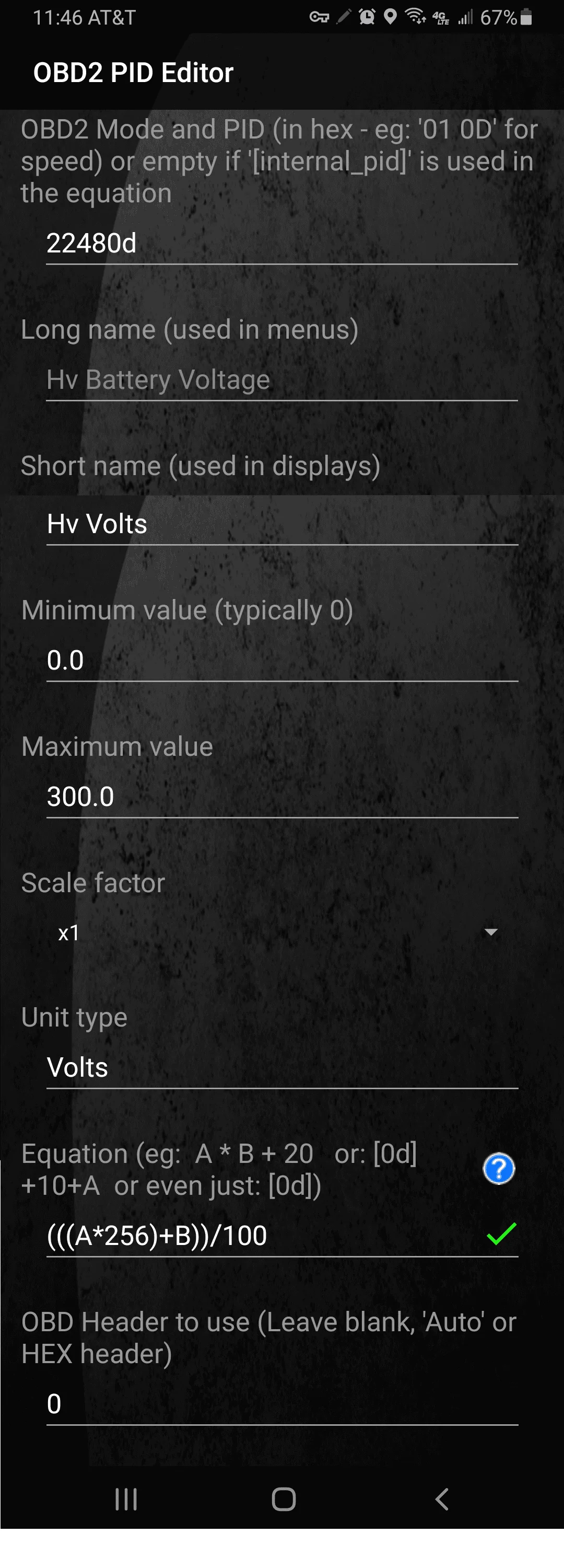

Ford F-150 PID for Hybrid 76e126f7-f1a8-4d3d-aefc-95350ac2f9b1


Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
Hey @oneinch

You happen to have a working oil pressure pid for the Ecoboost?

And if you do, you have the properties for it like you do for the SOC pid?

Nice dashboard!


oneinch

Well-known member
Joined
Apr 17, 2022
Threads
36
Messages
629
Reaction score
565
Location
Philly area
Vehicles
2022 F150 Powerboost, 2022 Maverick Lariat Lux
...oil pressure pid...
To my knowledge the F150 doesn't read the actual oil pressure in the engine. It just checks if a minimum pressure is obtained. Yes? No idiot light, all is good. No? Idiot light, shut 'er down. I could be wrong. I have never found a PID for real time oil pressure. I wish.


Sponsored


Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
The Ngauge (HPTuners) and Forscan both have the oil pressure Pid for the Gen2 3.5 Ecoboost. And the Raptor has it native to the instrument panel.
But the PID is incredibly elusive.

Here's my Ngauge showing oil pressure

Ford F-150 PID for Hybrid Screenshot_20200801-114522_YouTu

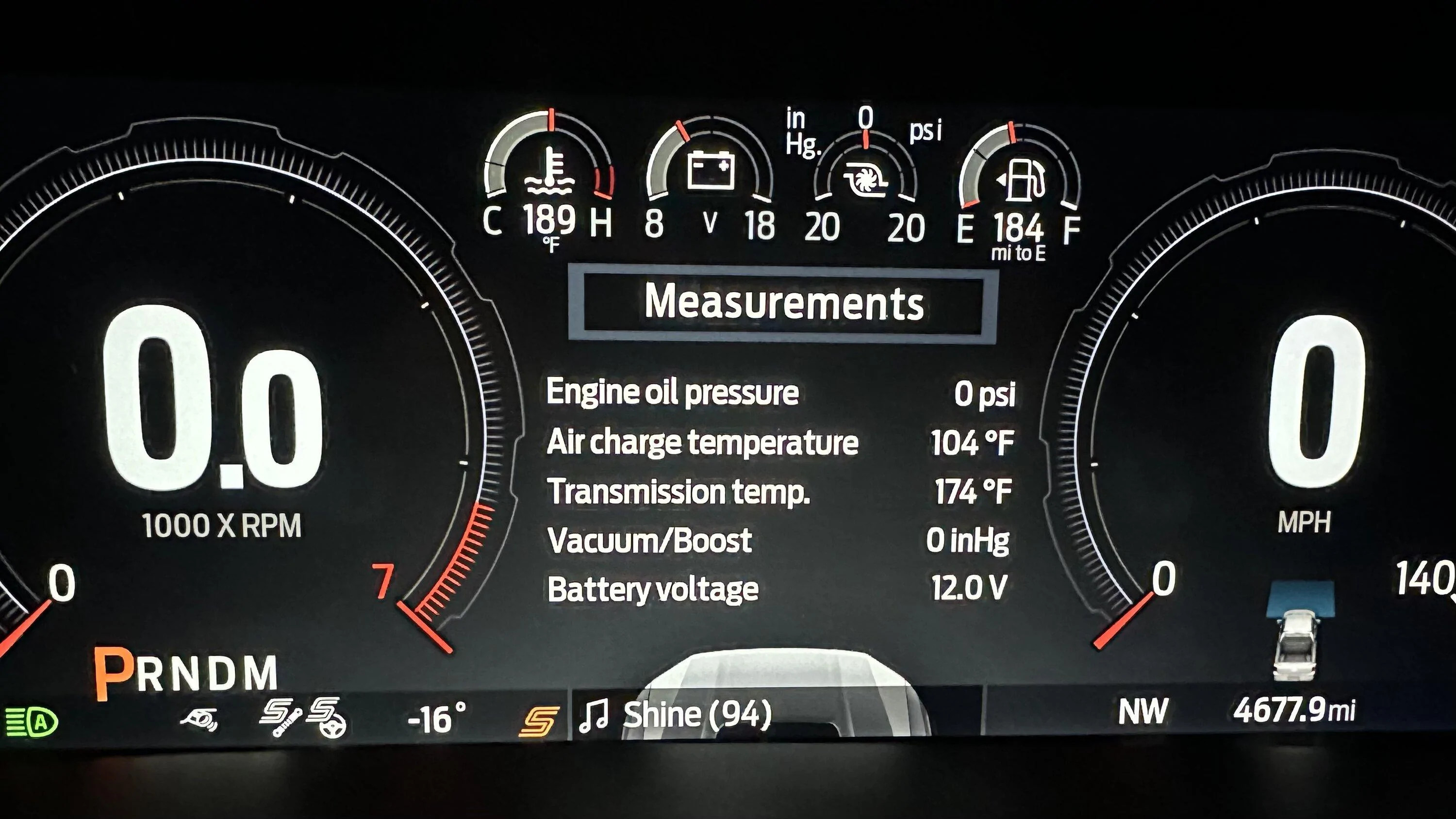

And the Raptor IPC

Ford F-150 PID for Hybrid 5ABF3B7A-802E-4C85-BFDA-7C1578FC8AC7


JediNut

Well-known member
First Name
Emmett
Joined
Aug 4, 2021
Threads
35
Messages
404
Reaction score
399
Location
Nashville, TN
Vehicles
'21 Ford F-150 Lariat PowerBoost
Occupation
Old Time Geek
Sure thing.
Remember to change the file extension to stg before importing. (this is NOT a pdf file)
And put a checkmark in "user defined pids" if you want the OAR PID
Dang... same thing as last time.

Alignment off on things and some of the gauges didn't keep the same PIDs. It looks kind of like all the Ford PIDs were remapped to MPH.

In any case... it's a MUCH better starting point than a blank screen. Since Bruce took the time to post how all the guages are mapped, I should be able to fix the mappings pretty quickly.

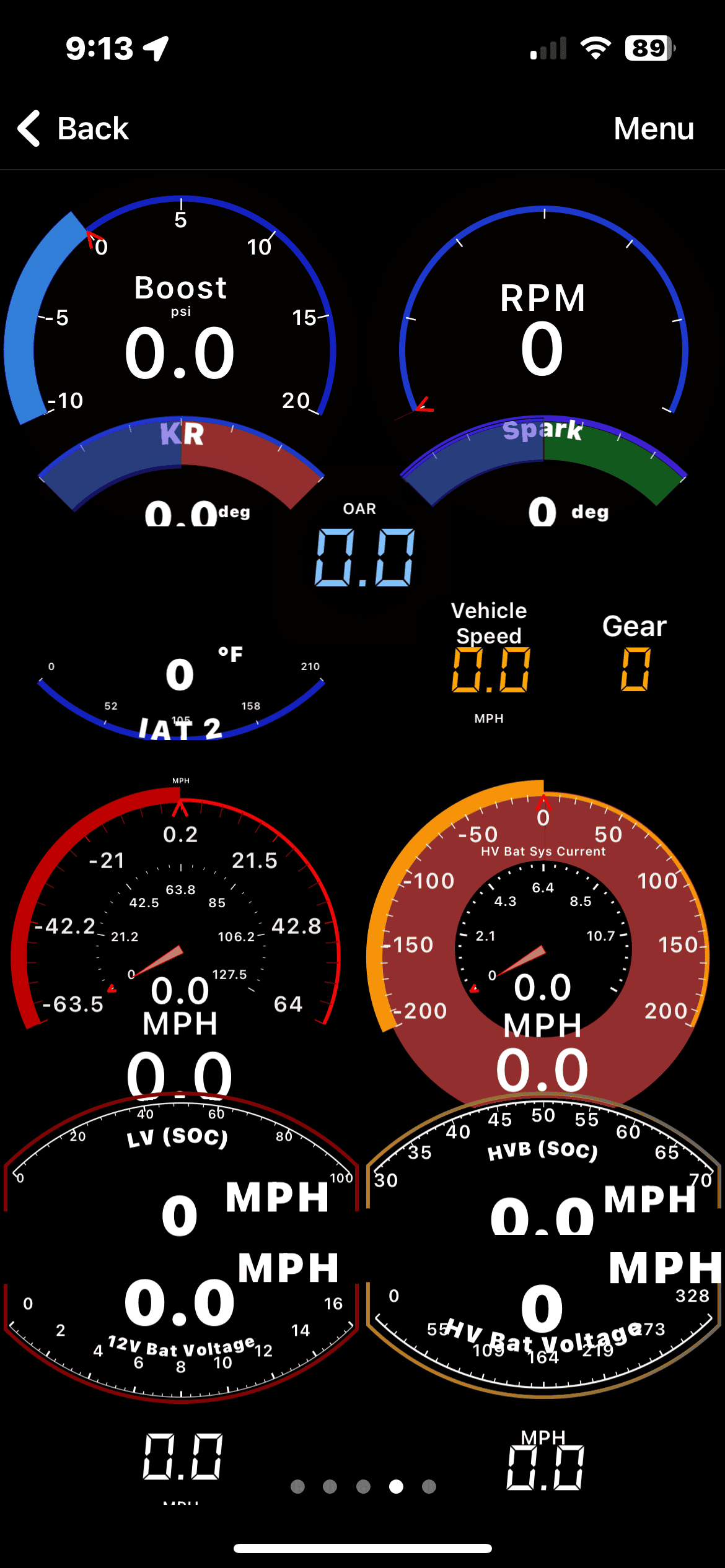

Here's the way it imported to my iPhone 14.... I was really hoping the updates to the app had fixed the problem.

Ford F-150 PID for Hybrid 1682864035184


JediNut

Well-known member
First Name
Emmett
Joined
Aug 4, 2021
Threads
35
Messages
404
Reaction score
399
Location
Nashville, TN
Vehicles
'21 Ford F-150 Lariat PowerBoost
Occupation
Old Time Geek
I can confirm that the PIDs that reverted to Vehicle Speed are all the "Ford PIDs". Even though I have the Ford, Lincoln, Mercury add-ons. I looked at the dashboard files (the STG is just a zip file and the dashboards are XMLs), and it doesn't look like there are any duplicates in Bruce's files, so it must happen on the import.

Anyway, I only had to remap a few PIDs, and I adjusted the gauges to fit my iPhone 14 a little better.

One thing that I notices was Bruce's Battery age in the lower corner is in Days... where the battery age PID I found was in Months.

Thanks Bruce! (AKA @Snakebitten)


Snakebitten

Well-known member
First Name
Bruce
Joined
Jun 19, 2021
Threads
5
Messages
11,560
Reaction score
22,964
Location
Coastal Texas
Vehicles
2022 F150 KingRanch Powerboost
You are very welcome.
I owe more to the collective of the forum than I can find a way to give. :)


JediNut

Well-known member
First Name
Emmett
Joined
Aug 4, 2021
Threads
35
Messages
404
Reaction score
399
Location
Nashville, TN
Vehicles
'21 Ford F-150 Lariat PowerBoost
Occupation
Old Time Geek
Interesting little tidbit... I was stopped at a traffic light today and looked over at my Snakebit Dashboard and noticed a little discrepancy... (I had some extra room at the bottom, so I added "GPS Speed")....

Ford F-150 PID for Hybrid 1683063582777
