HD Camera?

[JExpedition07]

My understanding is XL and XLT get a low quality camera and the Lariat and higher get a better camera.

Sponsored



[JJSnell]

Haha, the regular mug pic didn’t fit she’s back to the truck. Didn’t think anyone spotted that

I thought @Snakebitten was the only one that had a true selfie avatar?



[JExpedition07]

I thought @Snakebitten was the only one that had a true selfie avatar?

He does look just like his! I got it cropped for y’all



[JExpedition07]

OP, ignore the topic of the video and the title. I watched this back a long time ago and he brings up the camera quality difference between the lower trims and Lariat. It’s night and day, especially at night how distorted ours becomes.



[dc3843]

Well damn. That would explain it. Wonder if buying a camera from a lariat or up and installing will be that difficult….



[Mtnman1]

Holy crap......

Ok who will be the first to buy a lariot camera to try out?



[Mtnman1]

Holy crap......

Ok who will be the first to buy a lariot camera to try out?

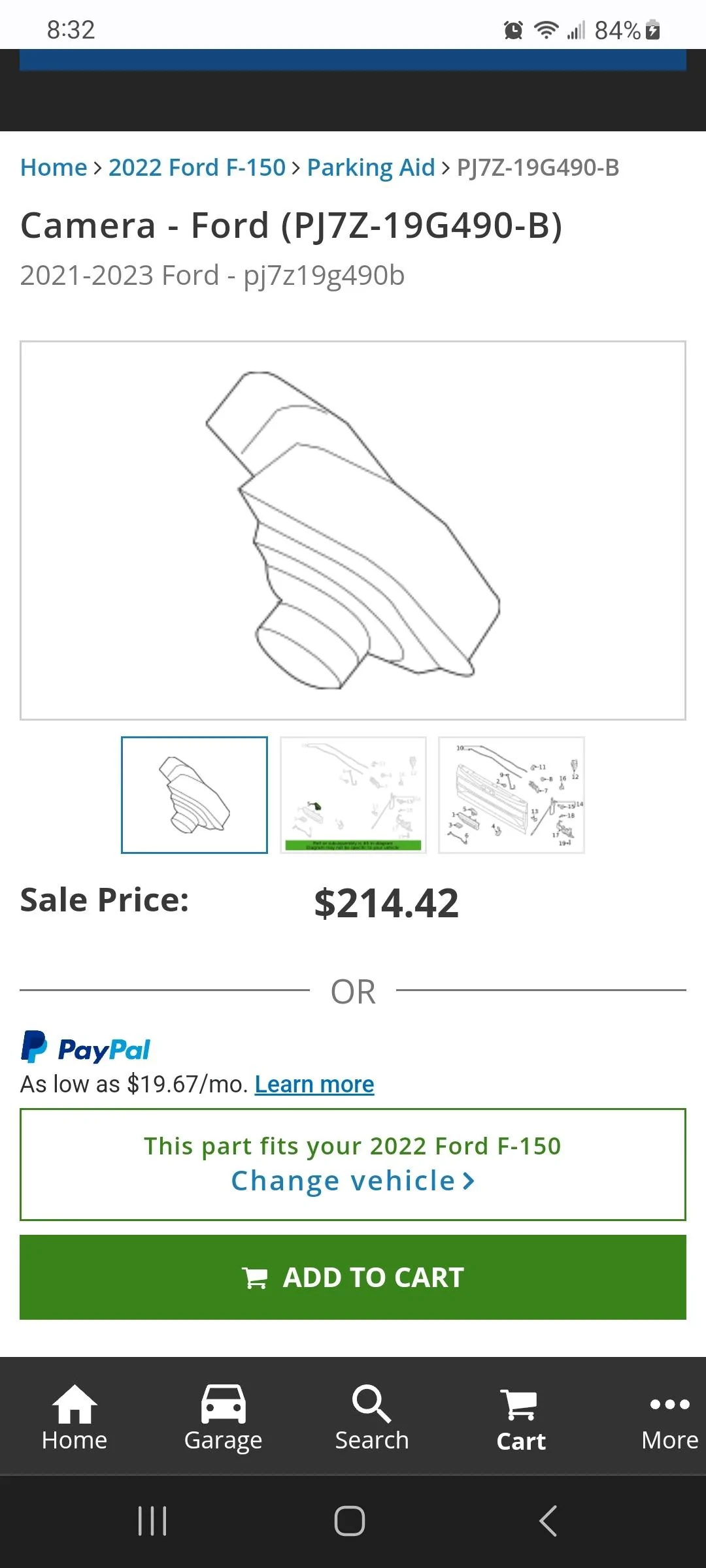

I searched Ford for 2022 lariot. I think this is the 'good" camera.



[hotrodmex]

The issue is the camera connections are different. The 360 camera version (that is the difference, probably for easier stitching of the video feeds) is a single wire, while the analog is several wires.

https://www.rostra.com/2021-ford-f150-tailgate-camera-relocation-kits.php



[Jesse-Infotainment]

Cameras in all trucks are identical.

Difference is the output from the IPMA

8" non 360 Cam do not use the coax output

THeya re all coax to the ipma. The 12" and 360 cam trucks have coax out to the APIM.

All you have to do is add the coax from the iPMA to the APIMa nd turn on digital out and in

Digital uses the brown apim connector.



[Snakebitten]

Well that clears that up.



[Jesse-Infotainment]

Here is the wiring diagram to better clear it up



[dc3843]

We’ll damn, now I gotta take it all apart and see what I’m missing



[Ranger621]

I have a 2022 Lariat and I think the camera in 2010 F150 had a better camera with a clearer picture.



[Jesse-Infotainment]

We’ll damn, now I gotta take it all apart and see what I’m missing

I’ve helped a few people add it

All you need is the coax from ipma to apim



[dc3843]

Did that not come in the kit from infotainment? That’s where I got the whole package. That and the column shift delete.
