2024 F150 bliss tail lights wiring diagram?

[rsiedlecki]

Hey guys anyone has the colour coding for the wiring in tail lights. I would love to install a light bar but would like to tap into existing wires.

Sponsored



[dirtygovnuh]

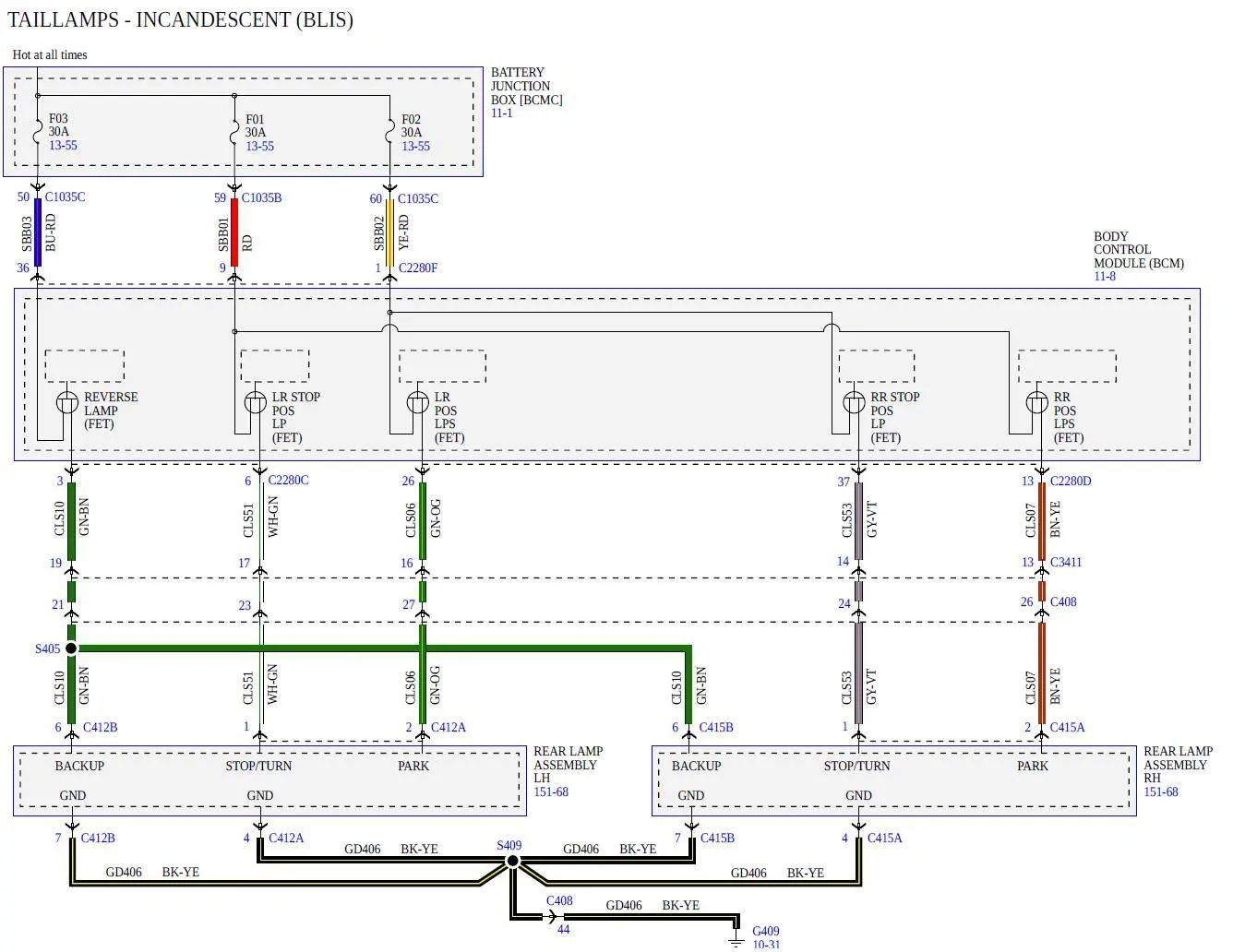

Is this what you need?



[Oakridge88]

I installed a LED light Bar under the tailgate and wired it into the trailer wiring behind the bumper. I now get a warning that I have a trailer attached and the Blind Side warning no longer works. Is there a way to hook up the wiring without the error code?



[Oakridge88]

Manufactures response: Will not work even if hard wired!


"If this situation still occurs with hard wiring, there is no solution to help you solve this problem.

Sorry for the inconvenience. you can contact Amazon for a refund.

If the order has exceeded the Amazon return period, please contact us to help you with a refund, thank you"



[dirtygovnuh]

I installed a LED light Bar under the tailgate and wired it into the trailer wiring behind the bumper. I now get a warning that I have a trailer attached and the Blind Side warning no longer works. Is there a way to hook up the wiring without the error code?

You will have to tap into the wires at the tail lights to not trigger the truck into thinking a trailer is attached.



[Kanuck]

Stealing the thread - I saw a GMC where they had mounted the light bar across the top of the tailgate. And 10 minutes earlier - a Ram 1500 with it between the tailgate and bumper. I would go with the GMC mounting option. I thought it looked good and can not be missed as it is IN YOUR FACE....

Now back to our regular programing...



[evrlaw]

You will have to tap into the wires at the tail lights to not trigger the truck into thinking a trailer is attached.

Hello! I’m going crazy trying to figure out which wires to tap into. Do you have the diagram or know where I can get it for a 2024 F150 Platinum? Your help will be much appreciated.
