XLT trucks with push button start cup holder/ambient lighting

jbheffron

New member
Joined
Jun 20, 2024
Threads
0
Messages
1
Reaction score
2
Location
Tennessee
Vehicles
2021 F-150 XLT
Huge shout out to JHForman812….can’t thank him enough. I had the factory connectors but had an issue with a short to ground in the factory wiring. Took the time to troubleshoot with me via text and ended up having to use his harness for the non-connector guys. Everything is finally working and looks great! I really appreciate him taking the time to help me out and his harness is top notch!!
Sponsored



Smokey44

Active member
First Name
Dustin
Joined
Jul 2, 2024
Threads
0
Messages
25
Reaction score
23
Location
Alberta
Vehicles
2023 F150 XLT 3.5L Carbonized Grey Mettalic 302A
Doing this mod on 2023 still in question? I'd like to do the foot wells and the cupholders and the back seat as well. All These seem to be a simple plug and play?

OP
OP

JHForman812

Well-known member
First Name
John
Joined
May 3, 2021
Threads
5
Messages
568
Reaction score
785
Location
Indiana
Vehicles
2022 F350
Doing this mod on 2023 still in question? I'd like to do the foot wells and the cupholders and the back seat as well. All These seem to be a simple plug and play?
If you’re a 23 see if you have the open connections, it makes it easier, but either way it is doable on 23s I’ve solved it


Smokey44

Active member
First Name
Dustin
Joined
Jul 2, 2024
Threads
0
Messages
25
Reaction score
23
Location
Alberta
Vehicles
2023 F150 XLT 3.5L Carbonized Grey Mettalic 302A
If you’re a 23 see if you have the open connections, it makes it easier, but either way it is doable on 23s I’ve solved it
Took a look this morning and I do have the open connections. Can I PM you for pricing on what I need?


Sponsored

MikeTHIS

Member
First Name
Mike
Joined
Jul 21, 2024
Threads
0
Messages
6
Reaction score
3
Location
Long Island, NY
Vehicles
2024 F150 XLT 302a BAP
Occupation
HVAC
Thanks for all your help too this was a learning experience, and ill update the thread with 24+ information later this evening.
I guess I’m glad I wasn’t the guinea pig here - I also haven’t had time to get to this yet.

Curious t0 see what changed - my truck had no connectors too.

OP
OP

JHForman812

Well-known member
First Name
John
Joined
May 3, 2021
Threads
5
Messages
568
Reaction score
785
Location
Indiana
Vehicles
2022 F350
I guess I’m glad I wasn’t the guinea pig here - I also haven’t had time to get to this yet.

Curious t0 see what changed - my truck had no connectors too.
Have i already built/shipped you a harness?


Sponsored


MikeTHIS

Member
First Name
Mike
Joined
Jul 21, 2024
Threads
0
Messages
6
Reaction score
3
Location
Long Island, NY
Vehicles
2024 F150 XLT 302a BAP
Occupation
HVAC
Thanks for all your help too this was a learning experience, and ill update the thread with 24+ information later this evening.
I know you're busy and working third shift, but did I miss the updates to the 24 in the thread? Just got my new laptop and adapter - will be ordering the ambient lights soon. Just want to make sure I have all my ducks in a row so to speak!

OP
OP

JHForman812

Well-known member
First Name
John
Joined
May 3, 2021
Threads
5
Messages
568
Reaction score
785
Location
Indiana
Vehicles
2022 F350
I know you're busy and working third shift, but did I miss the updates to the 24 in the thread? Just got my new laptop and adapter - will be ordering the ambient lights soon. Just want to make sure I have all my ducks in a row so to speak!
No I haven’t done them yet, I was waiting on a terminal to show up so I could send it to the 24 guy and make sure it was the right one for the BCM, it went out yesterday but it will be next week before I have a confirmation


jnobbe13

New member
First Name
Jason
Joined
Aug 18, 2024
Threads
0
Messages
3
Reaction score
13
Location
Cleveland
Vehicles
2021 F150 Super Crew XLT
Completed this tonight. Was pretty straight forward with the exception of a Ford issue that caused a short to ground. Big thanks to @JHForman812 for the harness and the tech support. Even though I had the factory wiring ended up with the full harness set because of the short. Harness made the whole thing pretty easy. Works great, looks great.

2021 XLT Super Crew 2.7L 302A

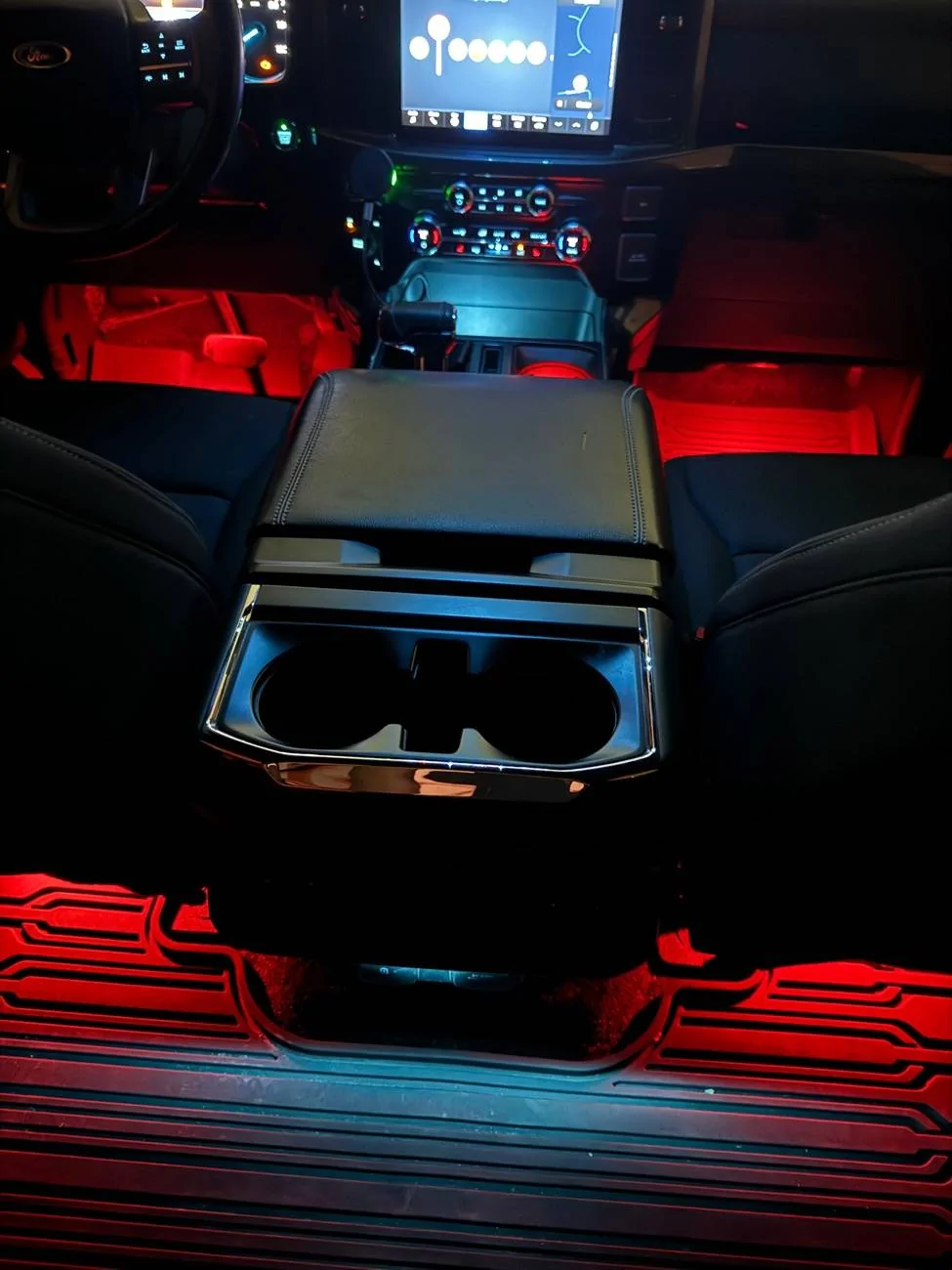

Ford F-150 XLT trucks with push button start cup holder/ambient lighting IMG_4329

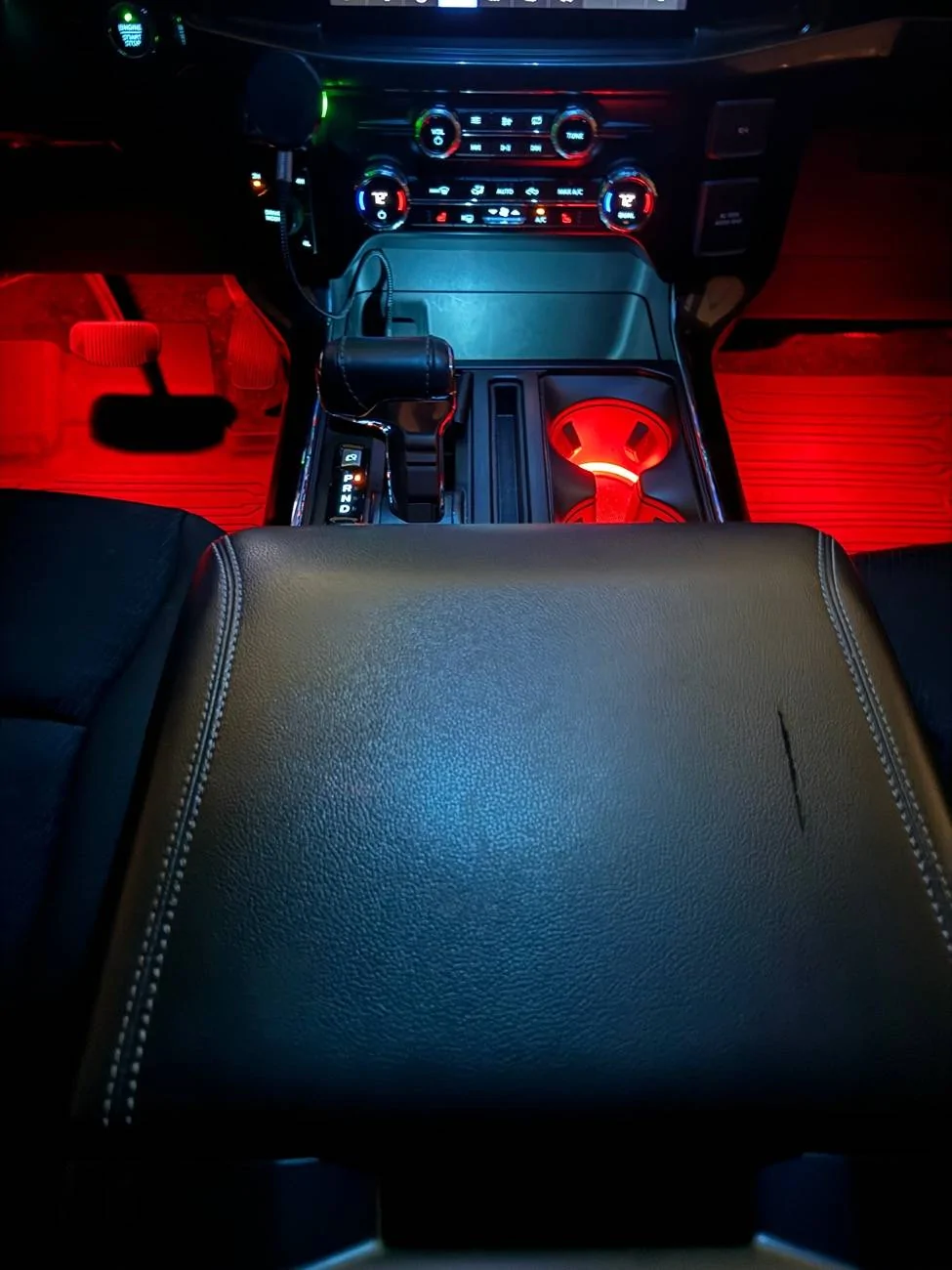

Ford F-150 XLT trucks with push button start cup holder/ambient lighting IMG_4328


Ford F-150 XLT trucks with push button start cup holder/ambient lighting IMG_4327


Ford F-150 XLT trucks with push button start cup holder/ambient lighting IMG_4326

OP
OP

JHForman812

Well-known member
First Name
John
Joined
May 3, 2021
Threads
5
Messages
568
Reaction score
785
Location
Indiana
Vehicles
2022 F350
Completed this tonight. Was pretty straight forward with the exception of a Ford issue that caused a short to ground. Big thanks to @JHForman812 for the harness and the tech support. Even though I had the factory wiring ended up with the full harness set because of the short. Harness made the whole thing pretty easy. Works great, looks great.

2021 XLT Super Crew 2.7L 302A







Glad we got it up and going!!


joer1220

New member
First Name
Joe
Joined
Sep 8, 2024
Threads
0
Messages
1
Reaction score
2
Location
West Palm Beach, FL
Vehicles
2022 Ford F-150 Lightning XLT SR
Occupation
Lighting Designer
Completed this today on my 2022 Lightning XLT. Big thanks to @JHForman812 and @b bo

Had some trouble getting the connections on the BCM hooked up. @b bo had some great photos on page 7 of this thread showing where to do it. I didn't insert them all the way the first time. I found its easy to use some needlenose pliers when inserting them.

Installed Media bin, cupholders and glove box light. Took me about 8 hours but I'm happy with the final result. Thanks again to @JHForman812 for the harnesses and being available to help me troubleshoot lol.

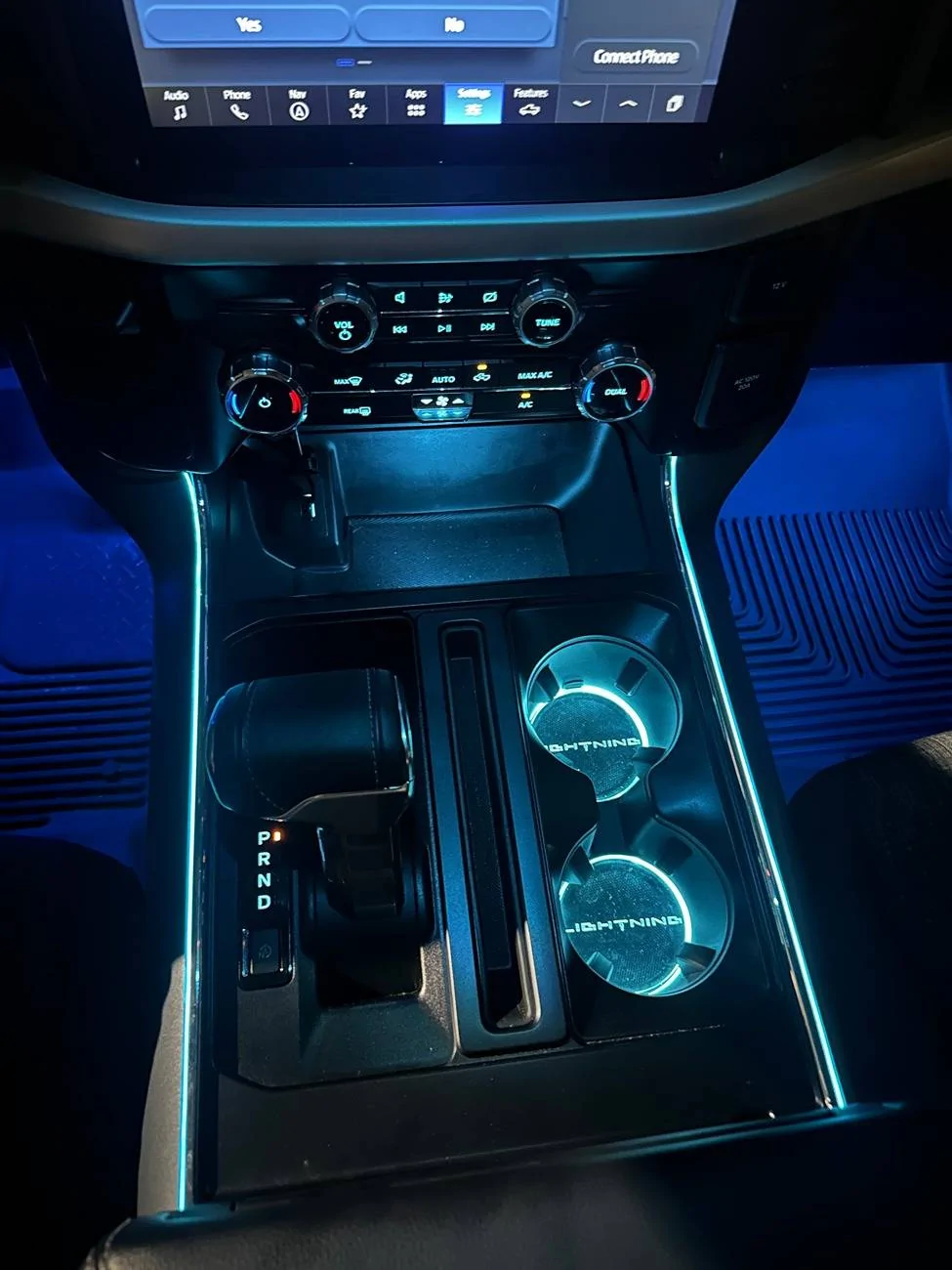

Strip lights on either side of console

Acrylic Cupholder Inserts

Ford F-150 XLT trucks with push button start cup holder/ambient lighting IMG_4775
