Pinouts / wiring diagram for installing power folding mirrors?

[elmerhiggins]

Hey, I'm in the process of upgrading my manual fold mirrors to power fold and have both mirrors and the new power fold window switch ready to install today.

Does anyone have the pinouts/wiring diagram handly for the power fold system so I can wire it up correctly?

Will post progress once successful. Thank you!

Sponsored



[Tlusk7]

Did you find this? If not go to https://www.motorcraftservice.com/Home/SetCountry?returnUrl=/

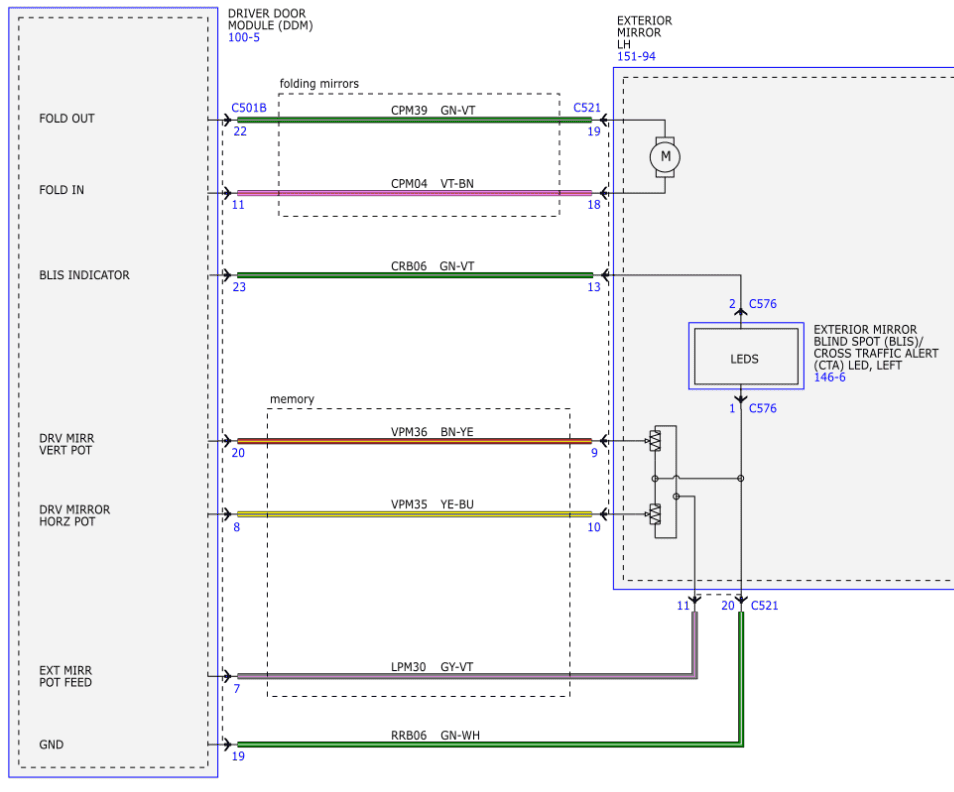

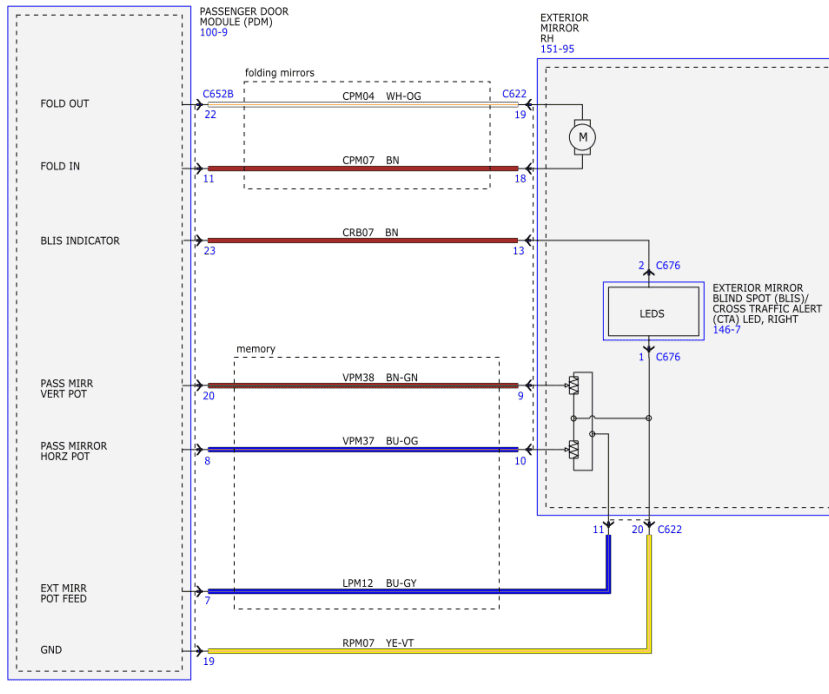

You can get schematics there



[HammaMan]



[RaacerX]

Whatever happened with this? Did you get it to work?

I'm trying to upgrade to power fold on my XLT but Boosted doesn't seem to be selling the harness anymore.

I want to make sure I can still retain all my 360, BLIS, CTA, etc.
