2025 F150 XLT - 360 Camera View Not Correct

[sdickinson2020]

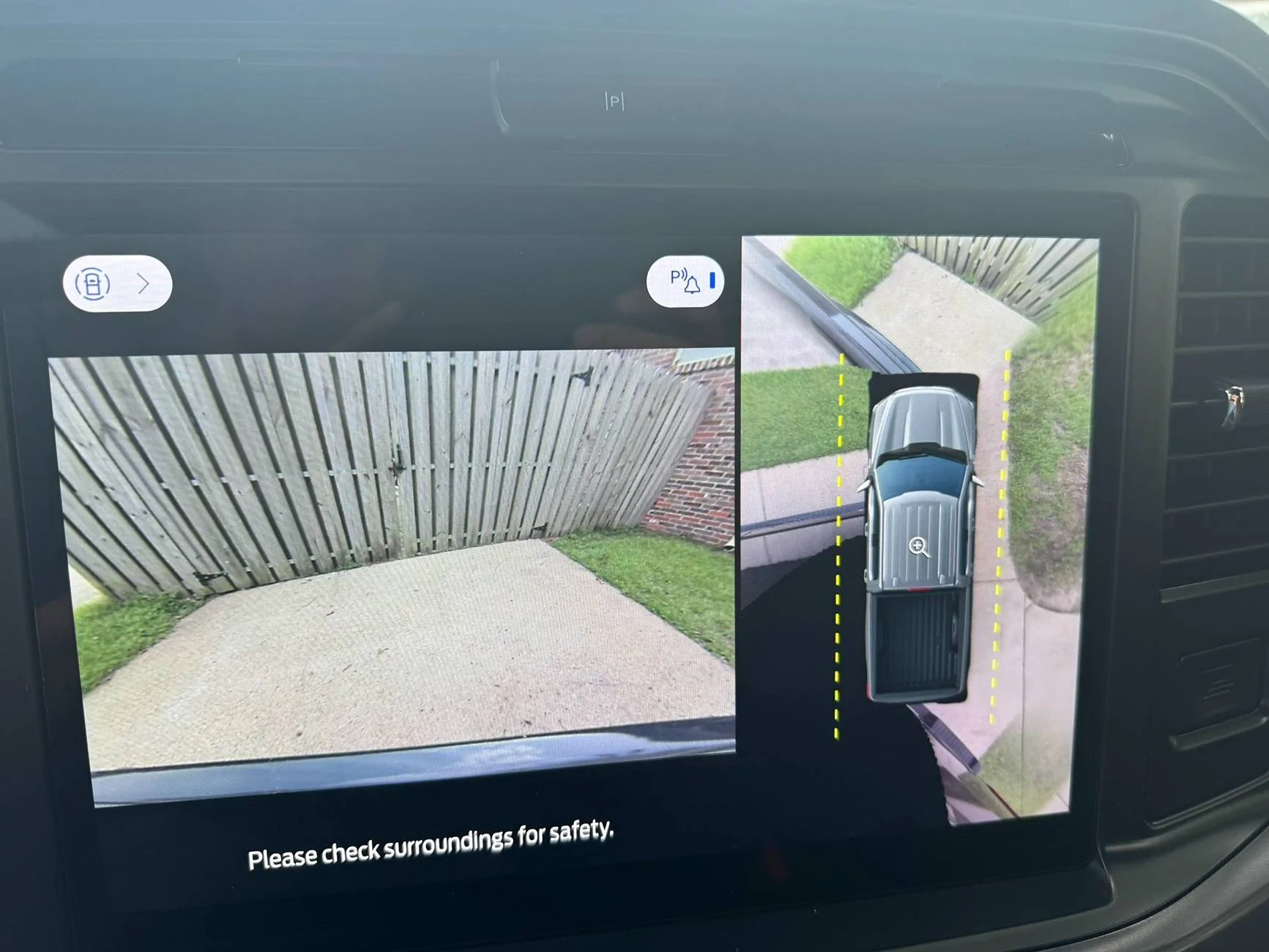

I used Forscan to remove the "Full View Not Available" box from the backup camera. After resetting the APIM module; it removed the window and everything appeared to be working fine. A couple days later, my 360 cameras are now not displaying correctly. I run the 360 camera calibration in the Forscan and after several attempts it finally completed, but displays still aren't right. Any help would be appreciated.

My VIN is 1FTFW3LD6SFA77772

Sponsored



[rugedraw]

Well damn.....never seen something like that happen. The change needed to remove the black box does not seem to be directly related to your issue. The truck is not reporting any codes relevant to the problem. I'm stumped.



[sdickinson2020]

No codes at all. The driver side mirror camera is working but it just seems to be assigned to the wrong position.

I even went back and reverted all my changes but it didn’t help at all.



[ReverendQ]

I used Forscan to remove the "Full View Not Available" box from the backup camera. After resetting the APIM module; it removed the window and everything appeared to be working fine. A couple days later, my 360 cameras are now not displaying correctly. I run the 360 camera calibration in the Forscan and after several attempts it finally completed, but displays still aren't right. Any help would be appreciated.

My VIN is 1FTFW3LD6SFA77772

Like you I have camera alignment issues not resolved by Forscan calibrating successfully on MY23, and have seen others from time to time with the issues posting on the forums. But they do not appear to be related to removal of the black box.



[sdickinson2020]

I agree. I dont think its related. I just can't seem to fix it. I was hoping the Forscan calibration would do it. I will eventually bring it to the dealership to get it fixed, but being told its a 2-3 wait time for diagnostic issues.

I was hoping it was a simple fix that somebody on here would have seen in the past.



[Porpoise Hork]

Perhaps there was an error during the write process or coding issue. Make sure you're running the latest Forscan and don't load from a saved profile. Try reverting back to the original As-Built to see if that fixes it. If it does then try to recode it again and see if it happens again or behaves itself.



[sdickinson2020]

Perhaps there was an error during the write process or coding issue. Make sure you're running the latest Forscan and don't load from a saved profile. Try reverting back to the original As-Built to see if that fixes it. If it does then try to recode it again and see if it happens again or behaves itself.

I'll give that a shot today to see if it helps. After I noticed the issue, I did revert to the APIM backup that I saved config that I had of the default values. But I'll try the original As-Builts to see if that helps.



[ReverendQ]

I agree. I dont think its related. I just can't seem to fix it. I was hoping the Forscan calibration would do it. I will eventually bring it to the dealership to get it fixed, but being told its a 2-3 wait time for diagnostic issues.

I was hoping it was a simple fix that somebody on here would have seen in the past.

Some have had good luck with changing the camera, others the IPMA, and some the video cables but none are easy fixes IMO.

Do please update us with What the dealer determines and fixes. TIA
