2024 F150 XL (RCSB) - Who has wired in a powered passenger seat?

[Doc Boston]

I just finished my driver seat swap, and am now exploring the install of a 10-way power passenger seat as well. For those that have done this swap, what did you use as your source of power? Any pin-out diagrams you could share would be appreciated too. Thanks.

Sponsored



[MGF150]

I ran power from the positive and negative on the driver seat to the passenger seat. I figured it would be very rare for Both seats to be operated with both of the controls pulling full current at the same time.

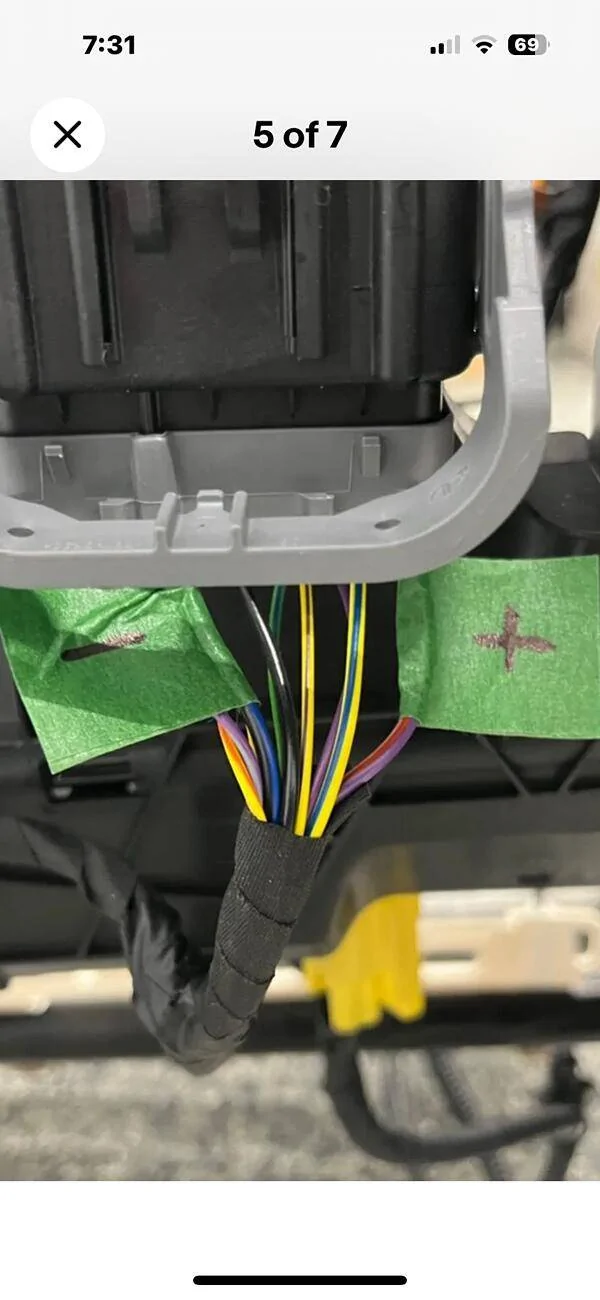

I have had no problems at all. The pinout is below.



[Turbonovatx]

I did1 this in my 23 rcsb, ran a new power and ground to the passenger seat, everything worked great. Now I have a 24 cc stx and wanted to do the same, but can't get the passenger side to work, not exactly sure why. Drivers side was plug and play,



[MGF150]

I did1 this in my 23 rcsb, ran a new power and ground to the passenger seat, everything worked great. Now I have a 24 cc stx and wanted to do the same, but can't get the passenger side to work, not exactly sure why. Drivers side was plug and play,

I tested the passenger seat with a 12v power supply and made sure it worked while it was sitting in my shop. Once I knew it was good, I simply connected the purple and red wire to positive and the black and blue wire to negative in the truck. In my truck, I just connected them to the same color wires on the driver seat, it works great and have never had a problem.
The 2024 passenger seat plug has no power to run the seat by it self. The pin is not even in the connector.



[Turbonovatx]

I tested the passenger seat with a 12v power supply and made sure it worked while it was sitting in my shop. Once I knew it was good, I simply connected the purple and red wire to positive and the black and blue wire to negative in the truck. In my truck, I just connected them to the same color wires on the driver seat, it works great and have never had a problem.
The 2024 passenger seat plug has no power to run the seat by it self. The pin is not even in the connector.

Thank ya sir, ill be getting on that this afternoon



[JGDallas]

I tested the passenger seat with a 12v power supply and made sure it worked while it was sitting in my shop. Once I knew it was good, I simply connected the purple and red wire to positive and the black and blue wire to negative in the truck. In my truck, I just connected them to the same color wires on the driver seat, it works great and have never had a problem.
The 2024 passenger seat plug has no power to run the seat by it self. The pin is not even in the connector.

I tested the passenger seat with a 12v power supply and made sure it worked while it was sitting in my shop. Once I knew it was good, I simply connected the purple and red wire to positive and the black and blue wire to negative in the truck. In my truck, I just connected them to the same color wires on the driver seat, it works great and have never had a problem.
The 2024 passenger seat plug has no power to run the seat by it self. The pin is not even in the connector.

Please dumb it down for me.... "Passenger side seat has no pin in the connector". You mean no pin in the male connector from the floor, or the female connecter in the seat? The question is where do you take power from (if not by tapping the front seat), and how exactly?
