Factory Heated Seat Retrofit

[tony72cutlass's']

Hey guys,

Looking to figure out if anyone has done just a heated seat upgrade for a base XLT (non 302A).

I basically want to:

- add the HVAC module with the heated seat buttons,

- heated seat pads under my factory cloth,

- and presumably run the wire that does not exist.

Any help is much appreciated!

Sponsored



[tony72cutlass's']

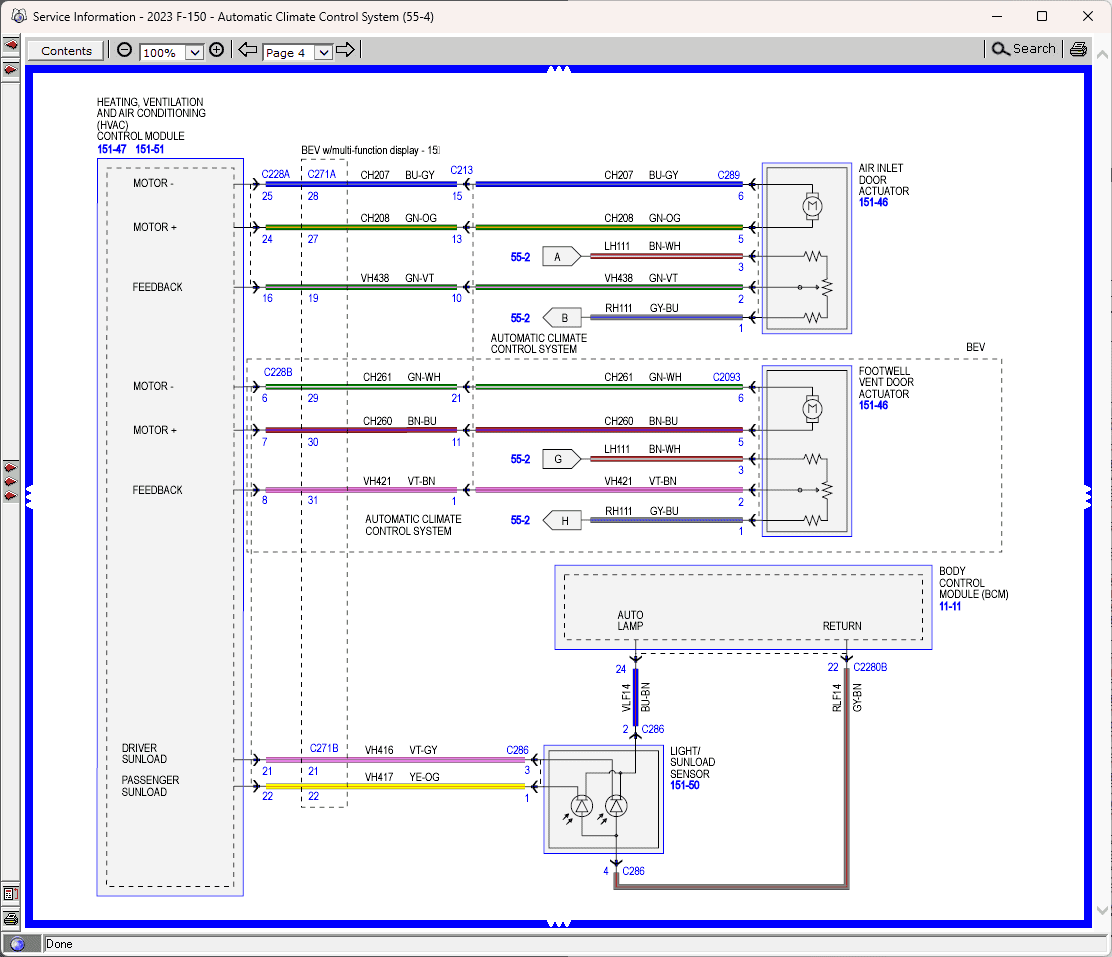

If anyone has the wiring diagrams from the HVAC control panel that would also be much appreciated!



[TeeJayHoward]

If anyone has the wiring diagrams from the HVAC control panel that would also be much appreciated!



[tony72cutlass's']

Wow thank you so much man!!! Your help is gonna get this retrofit started!!

Will post lots of pics!



[Tink Girl]

I have a similar need. I have a 2015 F150 Larriet. One of the pins burned out on the Seat Heater/Cooling connector that goes to the module under the passenger seat. I have a new connector and am trying to rewire the pins but I cannot find a diagram. If anyone can help that would be awesome!
